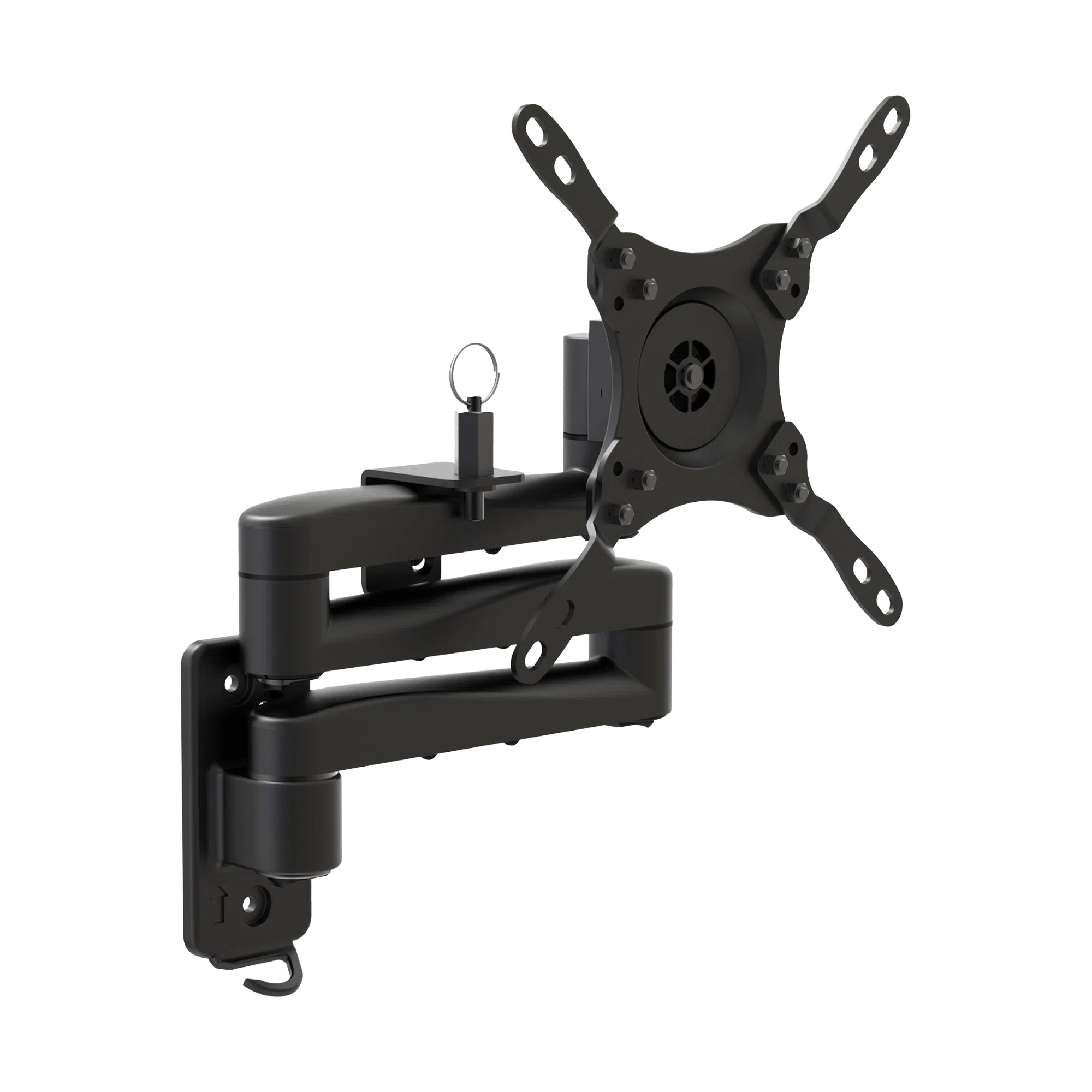

Maxview Quick-Release TV Bracket
Please note: Prices shown are for the products only and do not include fitting. Fitting and installation services are available at an additional cost. Please contact us for details.

Maxview Quick-Release TV Bracket
Sale price£49.99
- Fits TV screen sizes from 13” to 40”
- Designed to hold TV’s up to 15kg
- Supports VESA mount sizes from 75 x 75 mm to 200 x 200 mm
- The tilt mechanism offers adjustment for optimal viewing angle, ideal where height position is limited and to reduce glare
- Swivel adjustment can rotate from left to right, up to 180 degrees (depending on TV size); ideal for viewing from multiple locations and for corner mounting
- Integrated cable clips offer improved cable routing.
- Includes screw fixings required for mounting to any suitable surface
- High quality, durable and robust construction manufactured out of lightweight aluminium
- Matt black finish
- 1 year guarantee
Application

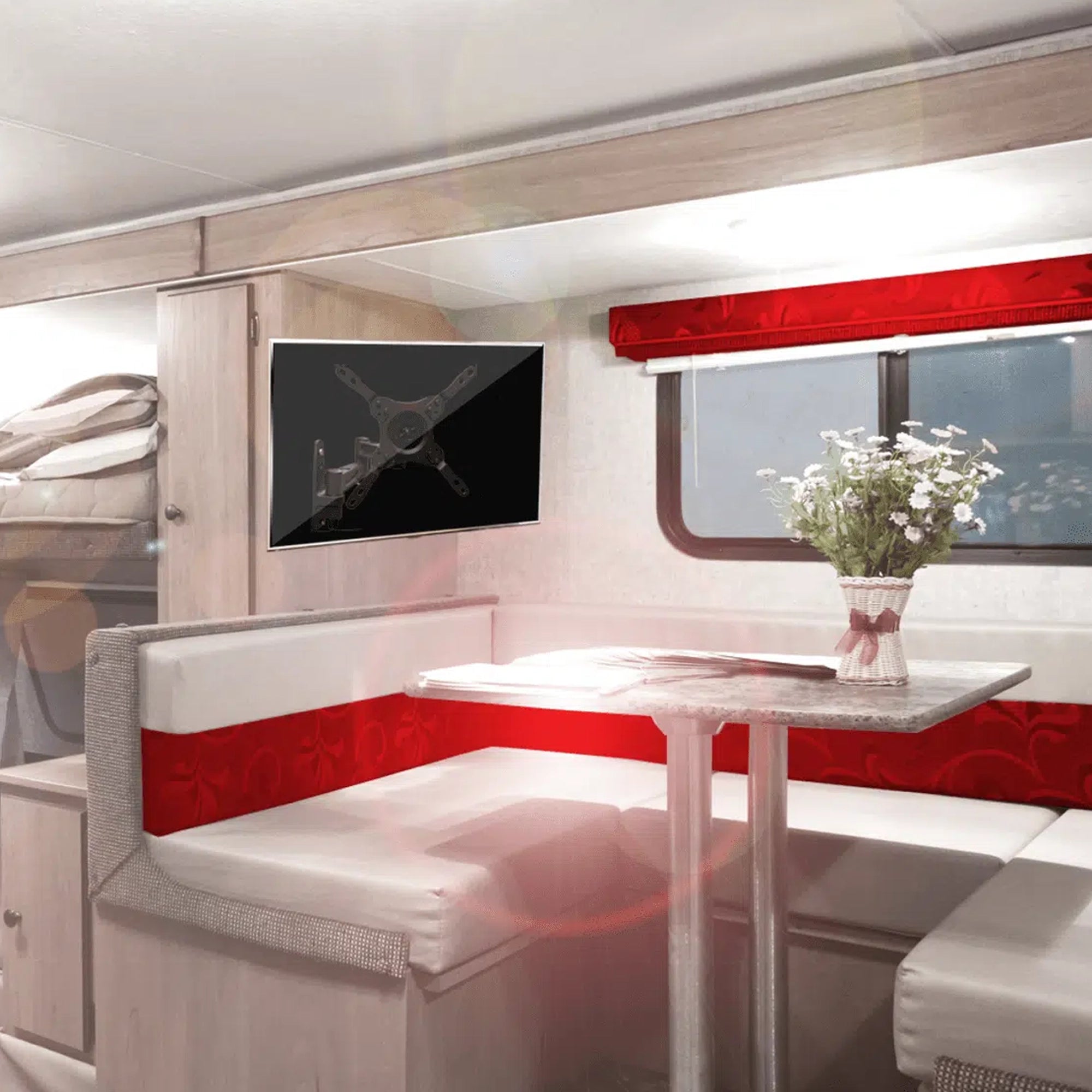

Any mobile touring vehicle including motorhomes, caravans, RV’s, HGV’s and marine
Maximum TV weight
15 kg
Suitable screen size
13" - 40″
Swivel angle
Left & right 90 degrees (depending on TV size and installation)
Tilt angle
15 degrees up and down
VESA compatibility
75 x 75 mm to 200 x 200 mm
Dimensions (product closed)
25 x 25 x 8 cm (H x W x D)
Maximum arm reach
62 cm
Distance from wall (closed)
8 cm
Product Highlights

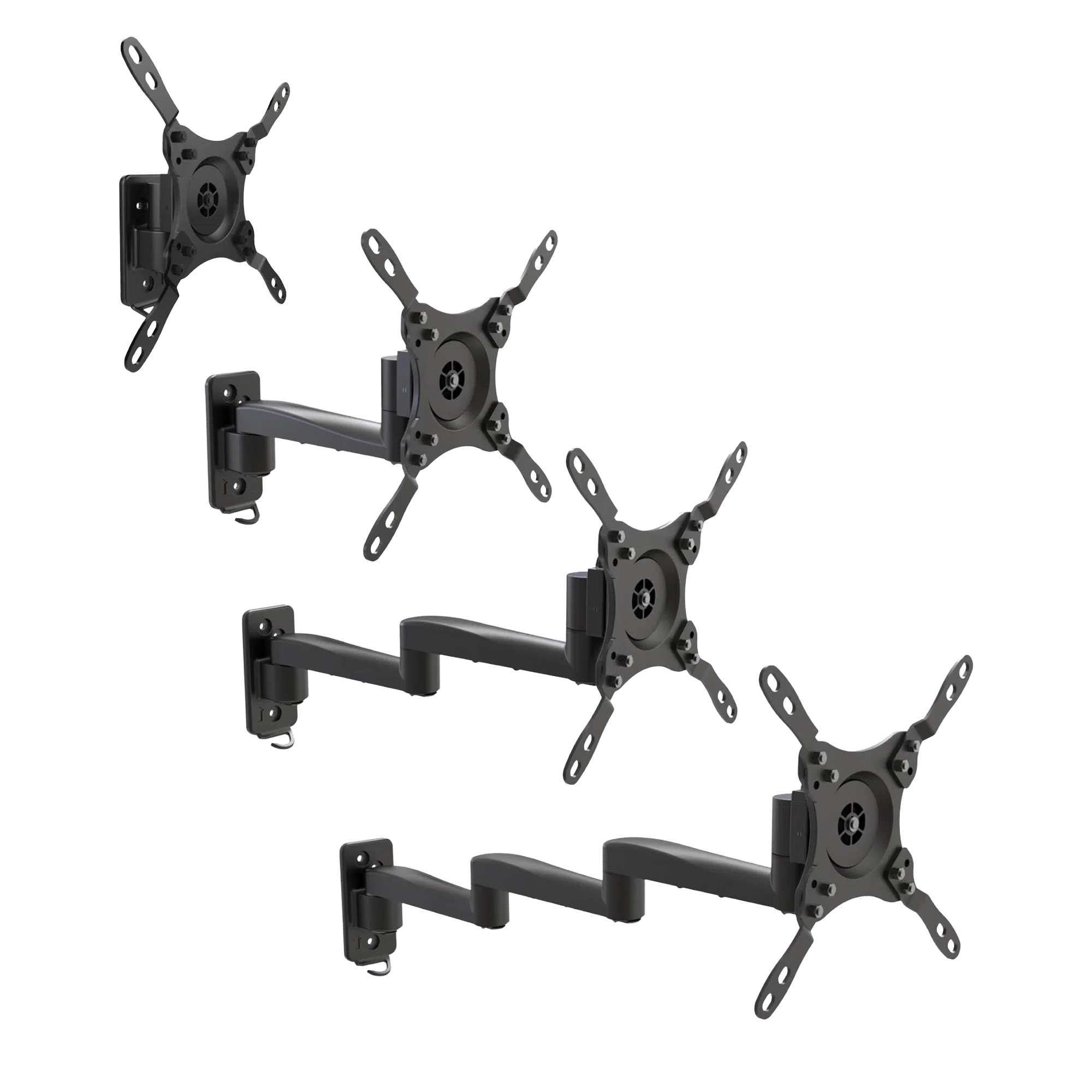

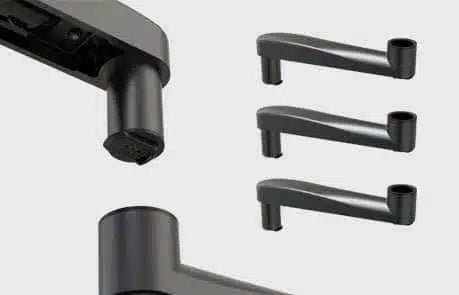

Quick Release Cantilever Arms
3 arms included as standard allowing universalfitting to suit your application

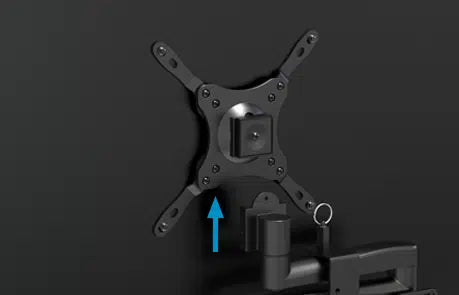

Easy TV Removal
The TV mount plate is designed to simply liftaway from the bracket, for easy removal and replacement

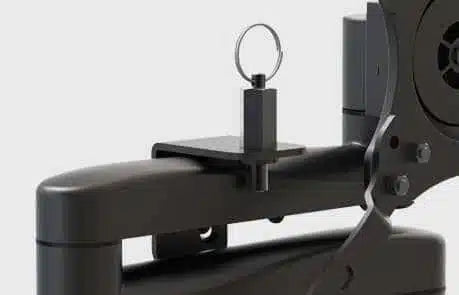

Arm Lock
Spring loaded locking catch locks arm securely to ensure safety for travel
