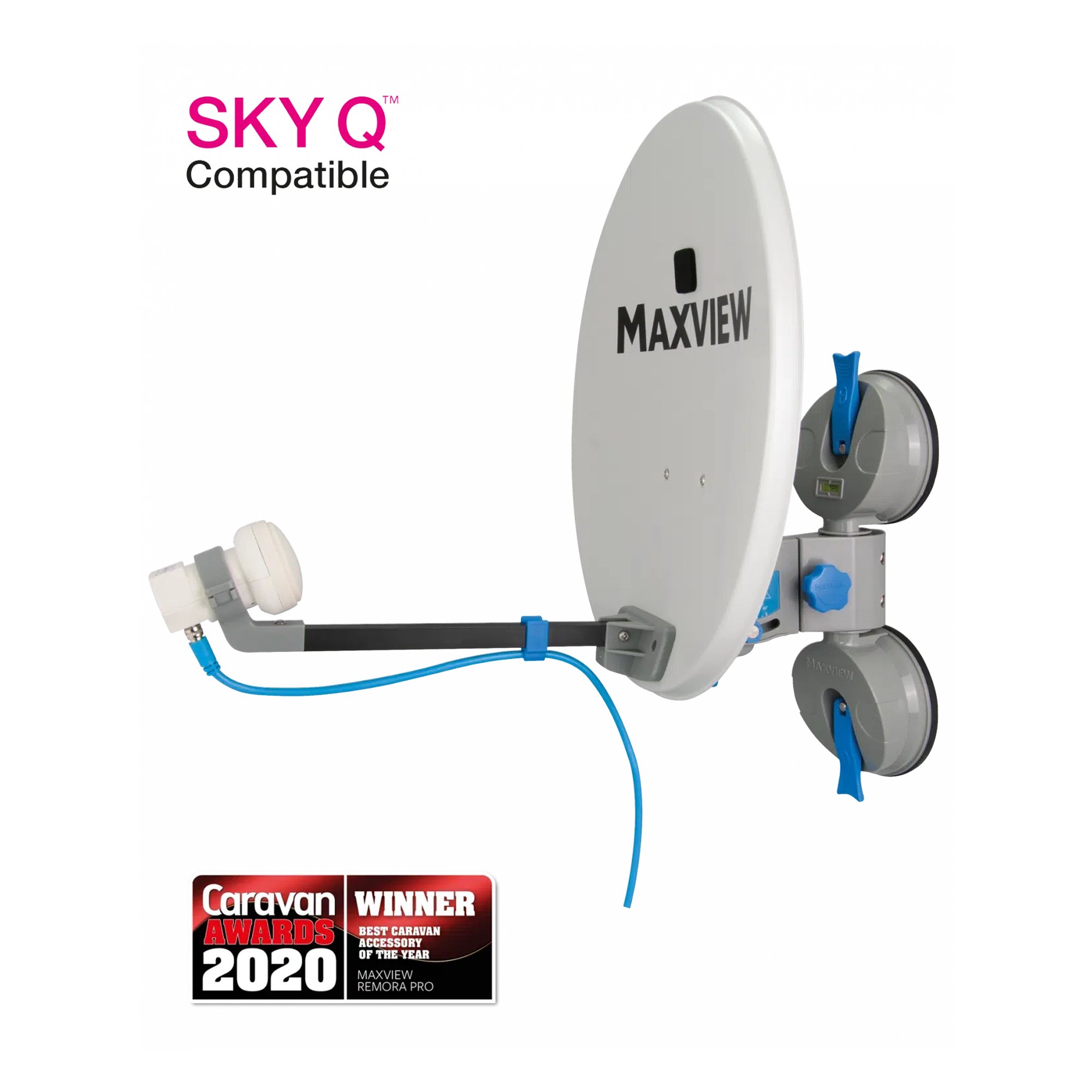

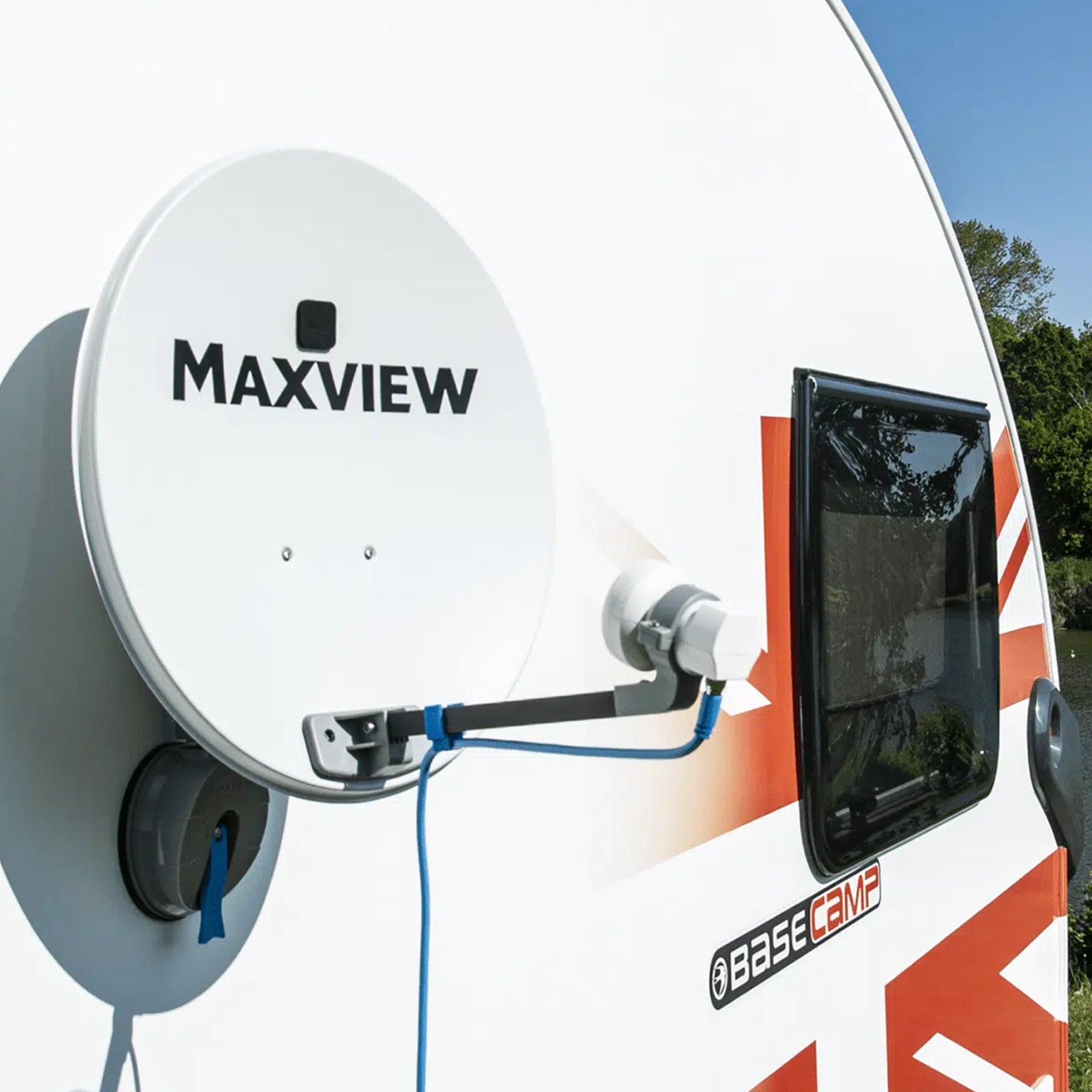

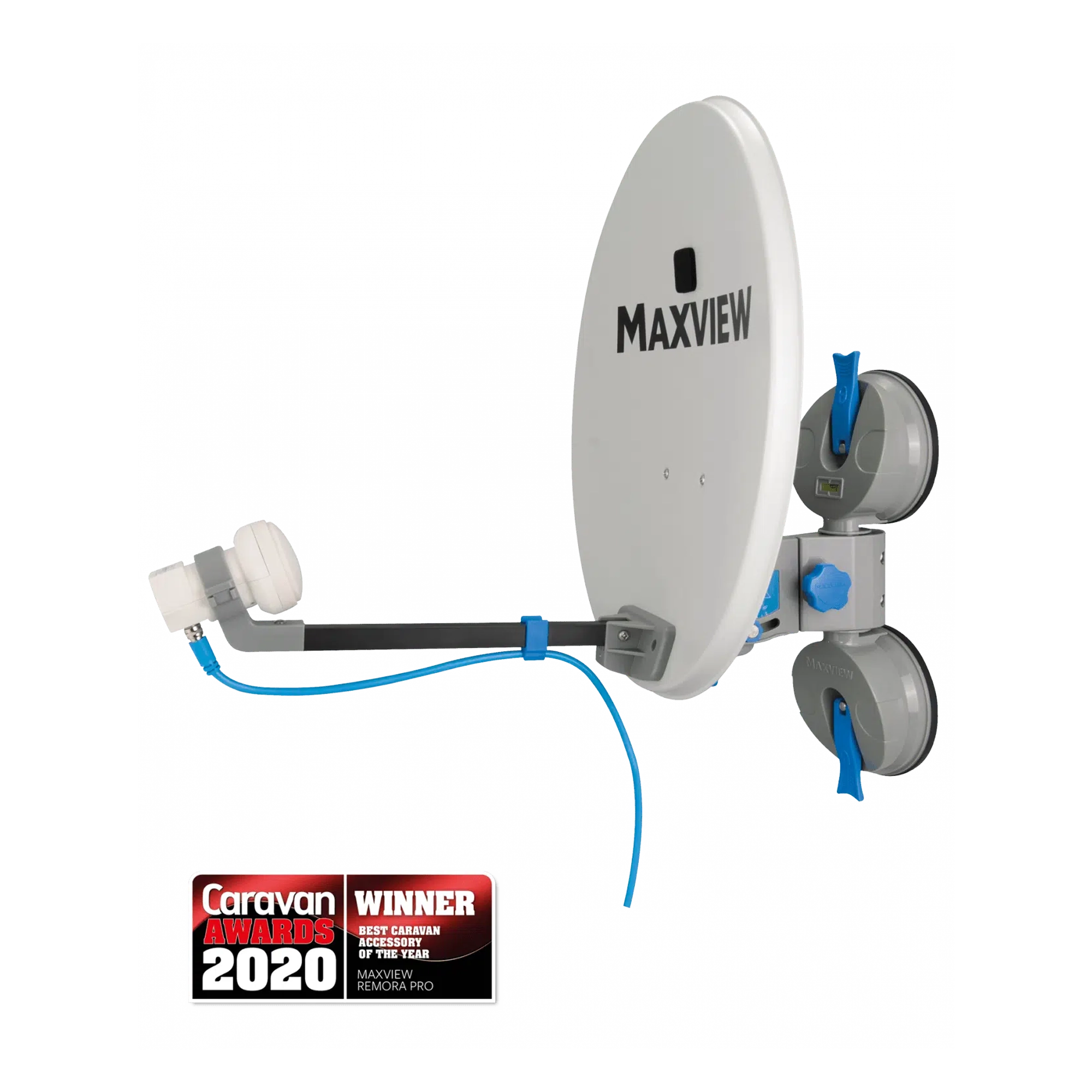

Maxview Remora Pro Suction Mount Satellite System

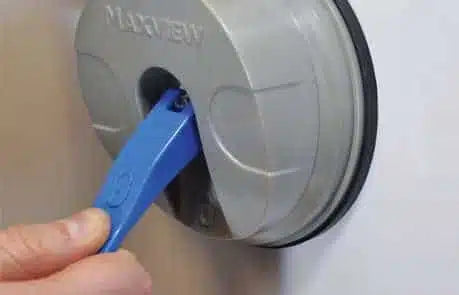

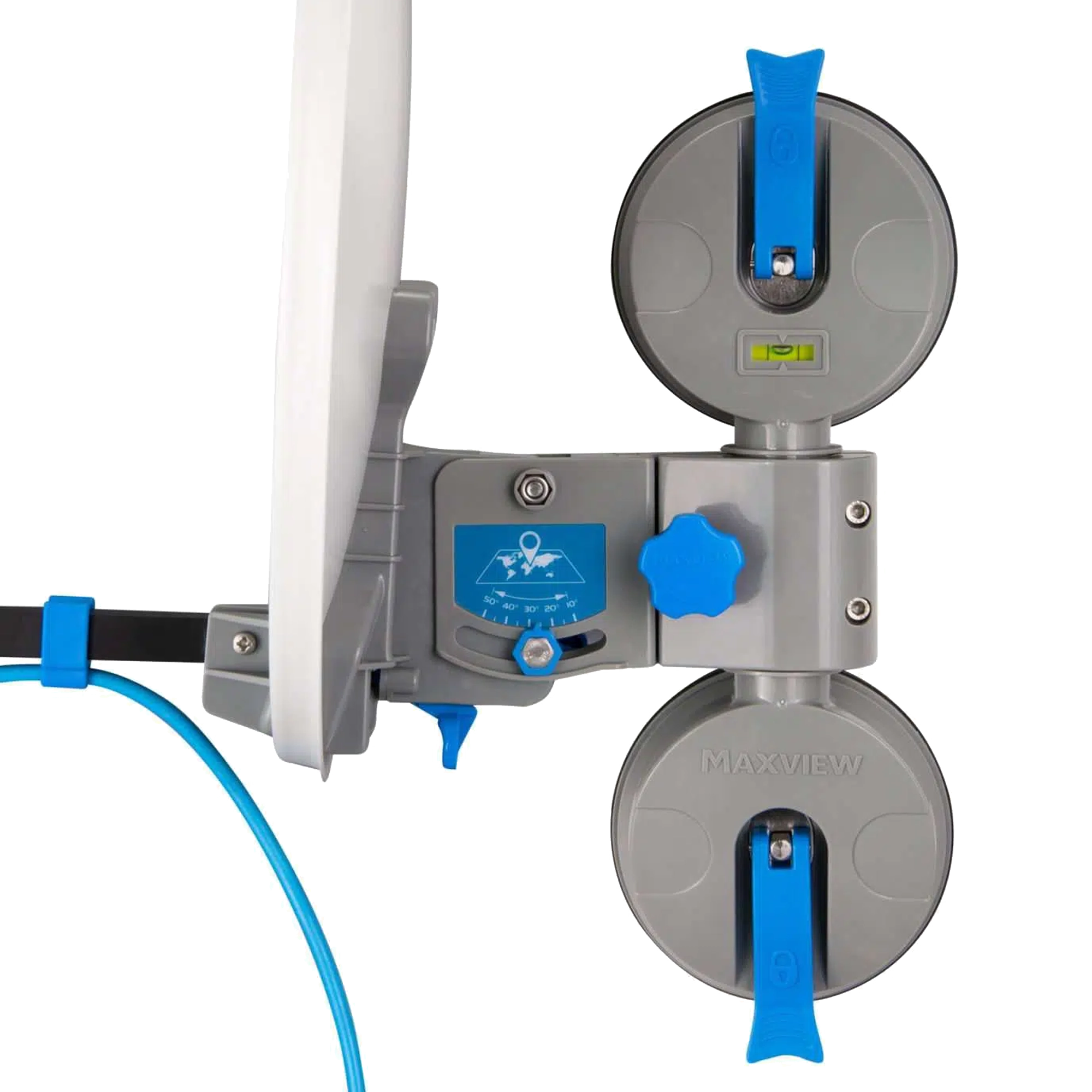

• Two built in quick release levers for easy mount & dismount
• Simple and intuitive manual operation

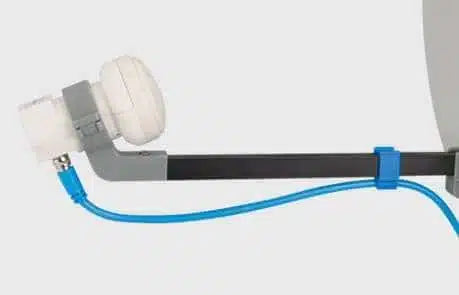

• Single LNB and Twin LNB variants available (for PVR’s, Sky+™ or 2 receivers) or Sky Q™
• Easy adjust manual skew system

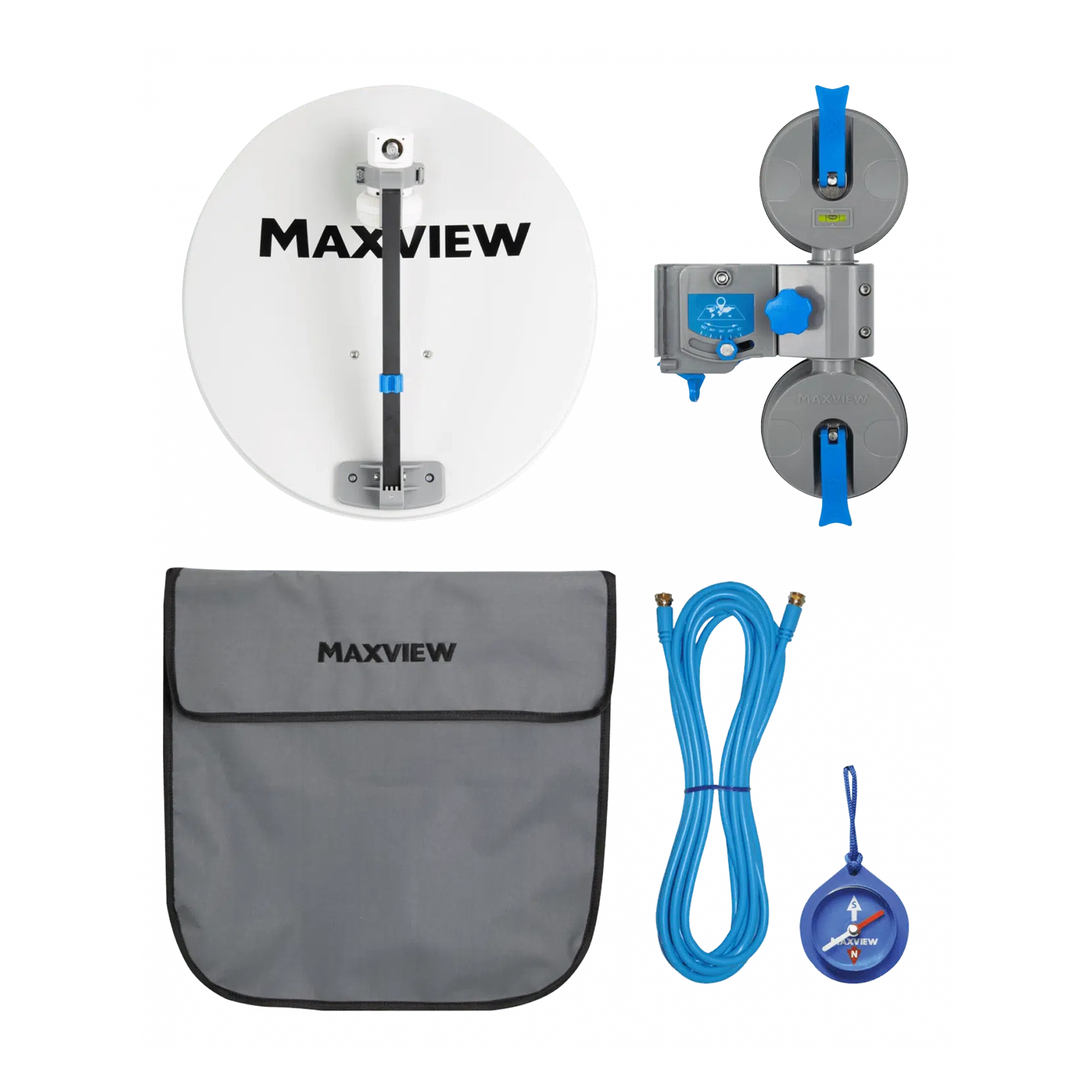

• A comprehensive kit for a complete set up, easy transportation and storage
• High quality, durable and robust construction
• Designed and tested for outdoor use
• Designed and manufactured in the UK
• 2 year guarantee

• Maxview Remora Pro Suction Mount Satellite
• 5m flexible F to F coaxial cable
• Satellite compass
• Instructions with elevation map
• Storage bag

• Compatibility: Transmissions from satellites worldwide (UK/European satellites as standard) Satellite Receiver/Integrated TV Required.*

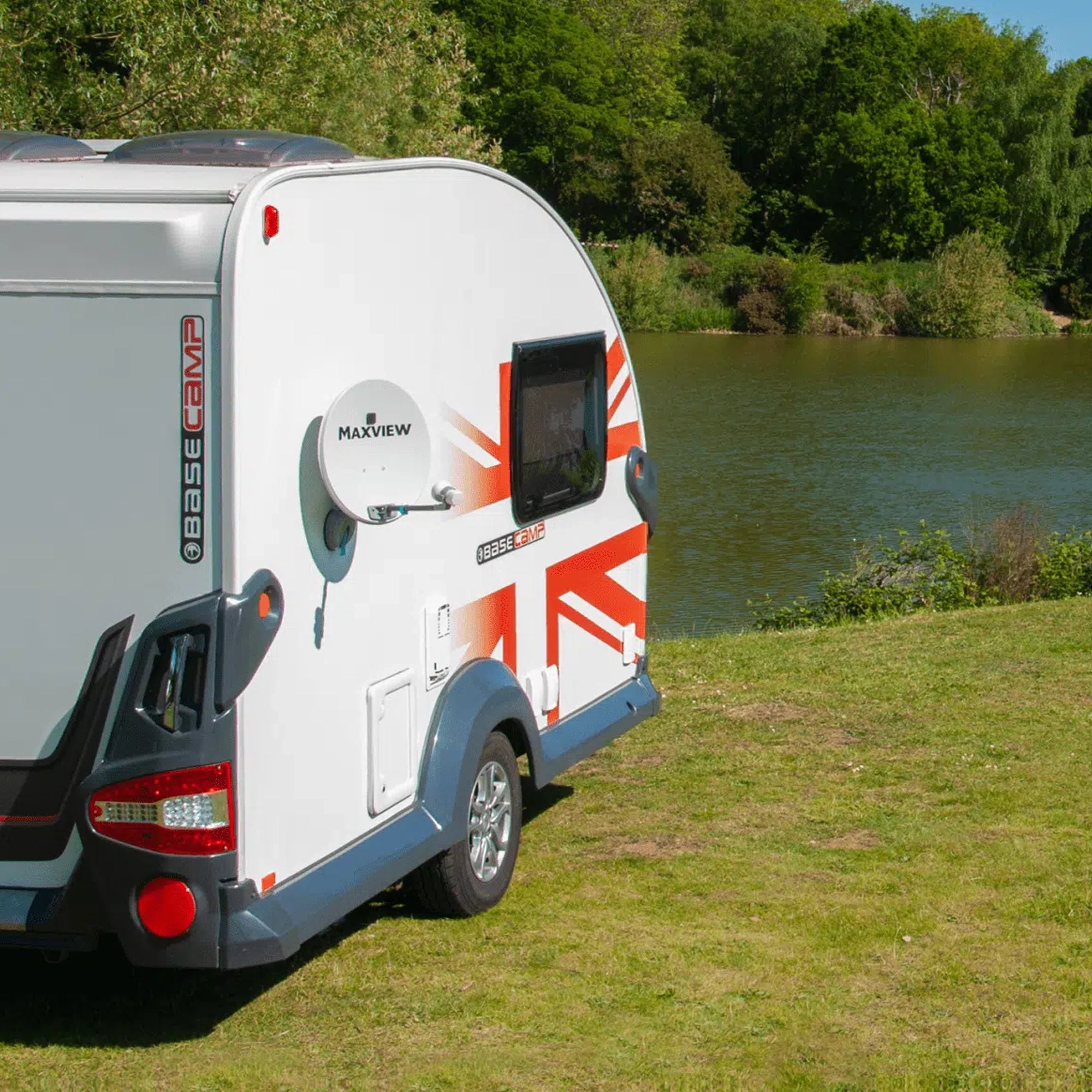

• Suitable for: Any smooth vertical surface with clear line of sight including
• Power: Passive. LNB powered through Coaxial cable from satellite receiver. No separate power supply required

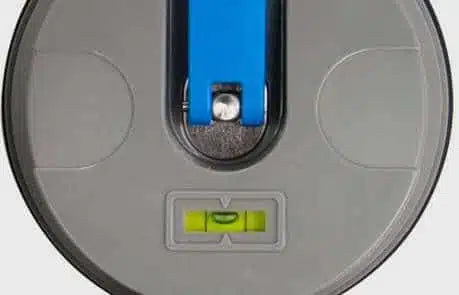

• Suction mount: Dual suction silicone mount suitable for a smooth surface only

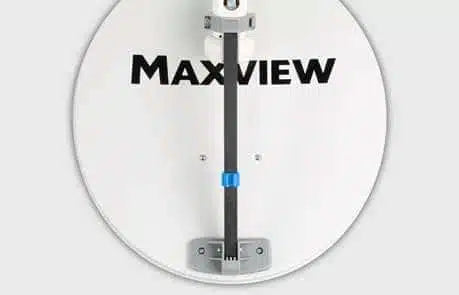

• Dish size: Aluminium 40cm Dish (39 cm width x 42 cm height)
• Dish gain: 32dB
• Dish acceptance angle azimuth: 6° / Elevation 8° (drop out at 77dBuV / AST2 = 84dBuV typical signal)

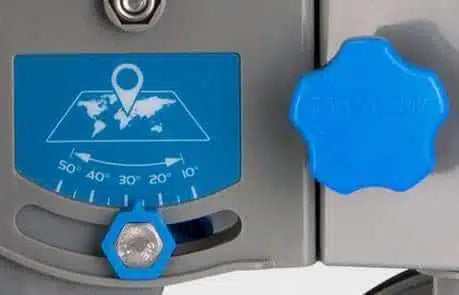

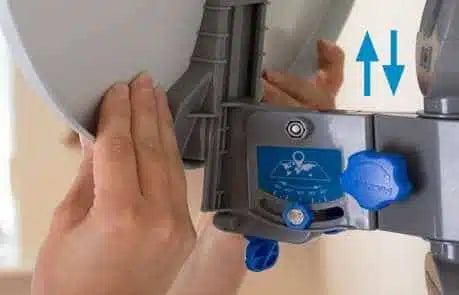

• Elevation range: 10° – 50°
• Skew adjustment: Manual -30° to +30°
• Azimuth range: 95°
• Weight: 1.4 kg

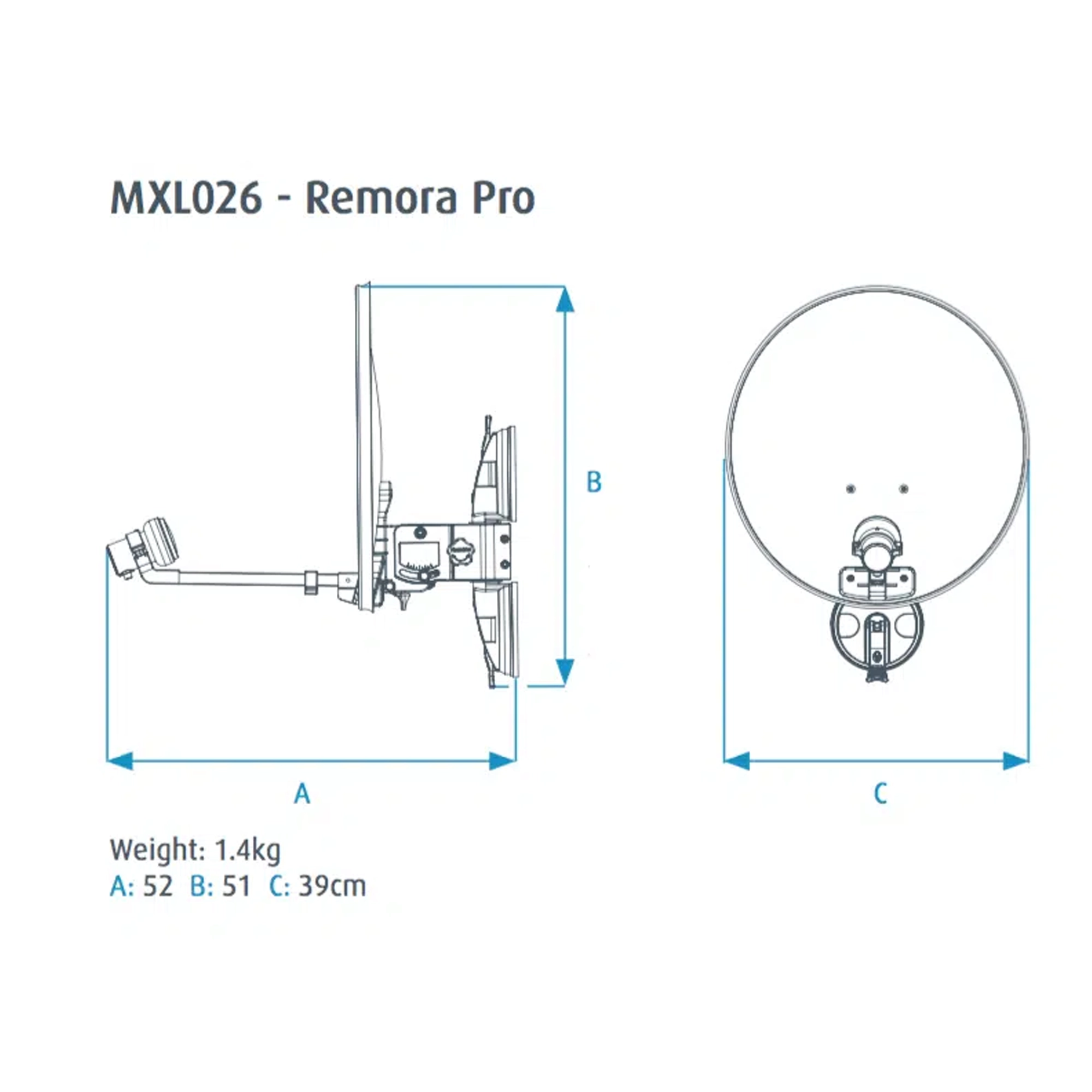

• Dimensions: 51 x 39 x 52 cm (H x W x D)

* It is the responsibility of the end user to understand any limitation/compatibility of their equipment (Receiver/Integrated TV)
