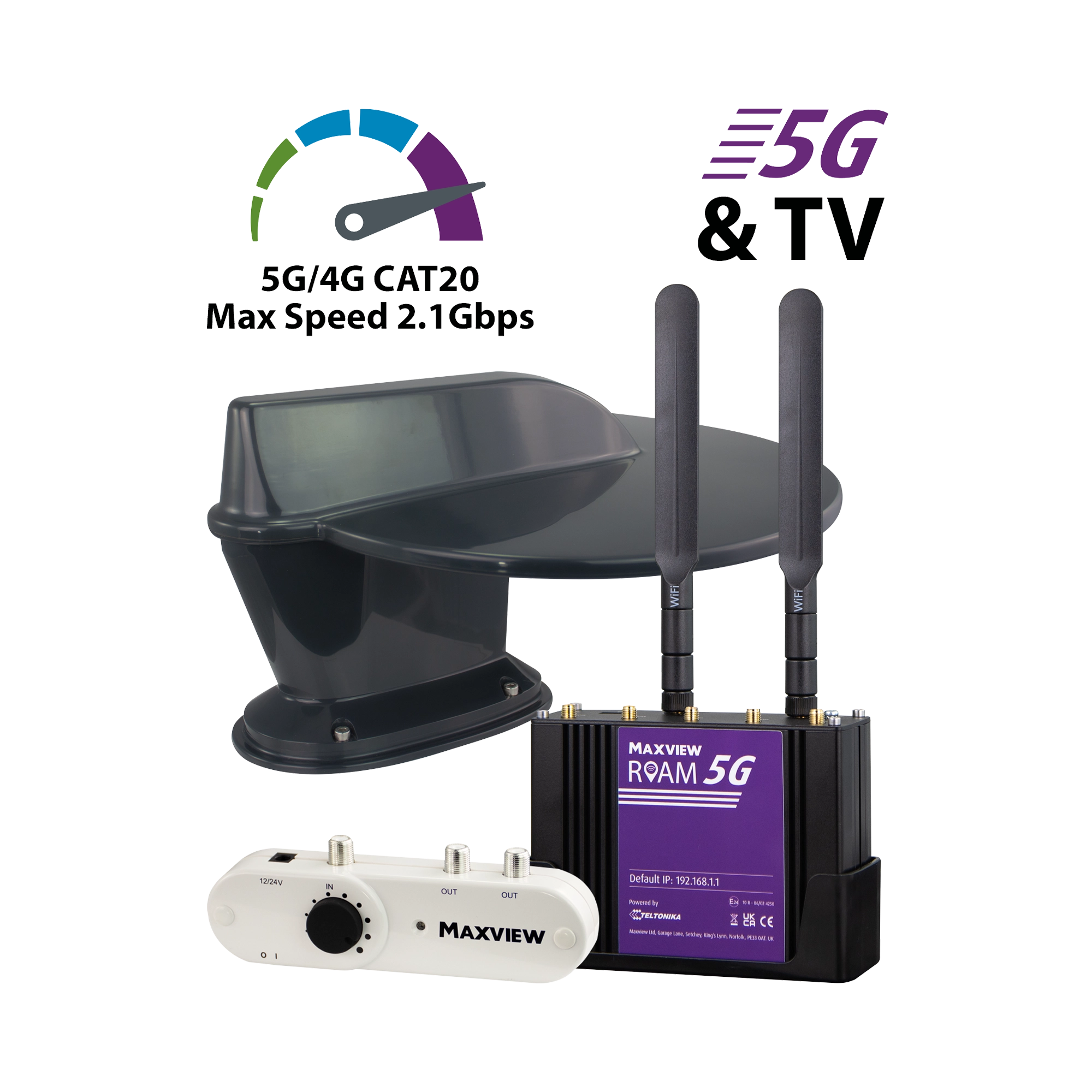

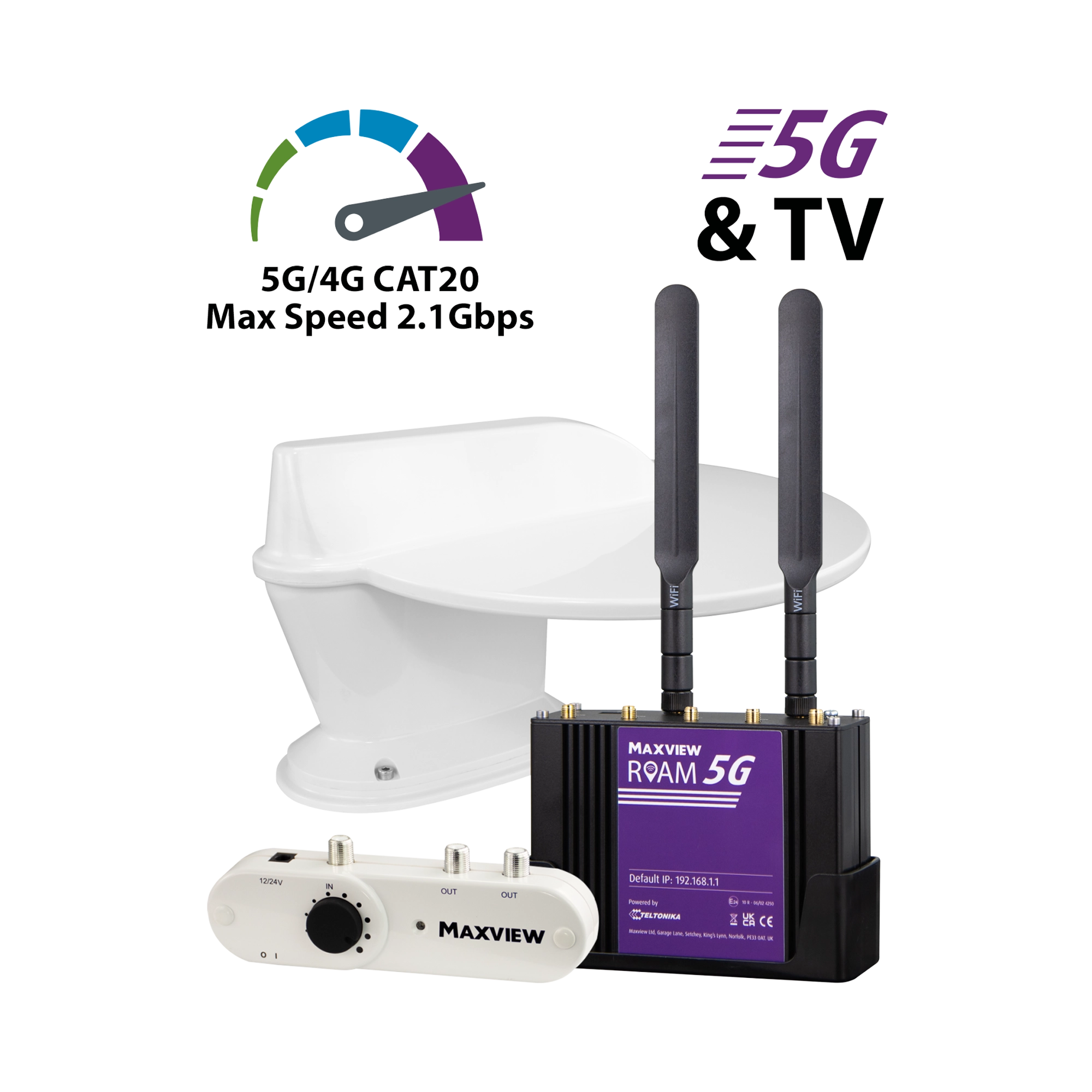

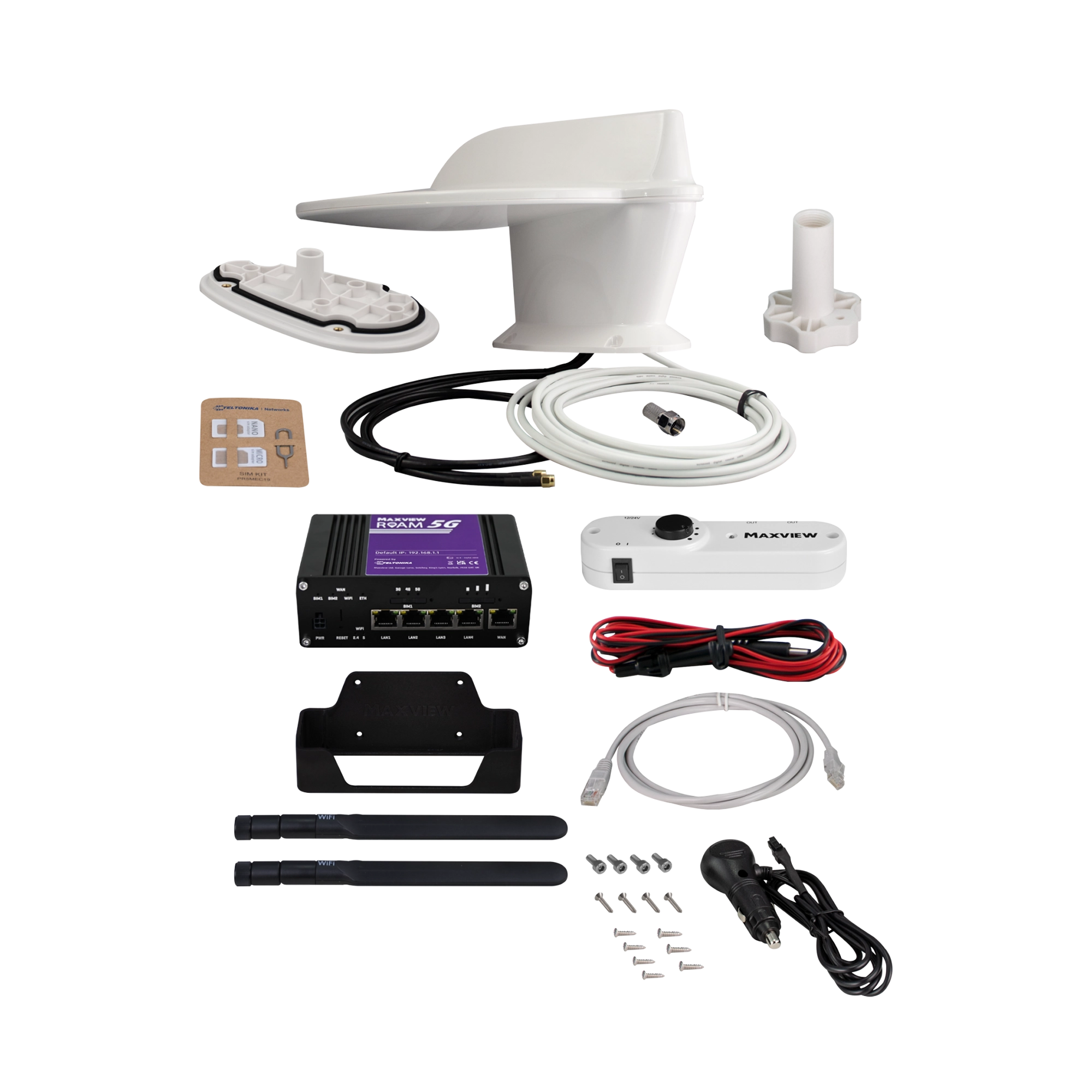

Maxview Roam 5G Combo Internet and Terrestrial TV

• All‑in‑One 5G Internet + Terrestrial TV Solution: Combines 5G/4G internet connectivity and Freeview terrestrial TV reception in a single roof‑mount antenna for efficient use of roof space
• Omni‑Directional Antenna: Receives signals from all directions, removing the need for manual adjustment once installed
• 5G/4G Wi‑Fi Hotspot: Powerful external antenna feeds mobile data into the included router to create a secure Wi‑Fi network inside your vehicle
• Terrestrial TV Reception: Integrated wideband UHF antenna allows you to receive Freeview channels when connected to a TV with a built‑in tuner
• Signal Booster: Adjustable gain control helps maximise TV reception strength in rural or low‑signal areas
• Included Router: Vehicle‑ready router turns mobile data into Wi‑Fi and can also repeat existing Wi‑Fi signals
• Maxview SIM Included: Get online straight away with the supplied SIM
• eSIM Compatible: An electronic SIM which can be downloaded to your router without the need for a physical SIM card
• Designed for Vehicle Use: Perfect for motorhomes, caravans, canal boats, campervans and hospitality vehicles

• Antenna type: Omni-directional
• Frequency/gain (4G Antenna): 698-6000 MHz/5.9dBi -8.8dBi Includes all 4G/5G frequencies
• Frequency/gain (UHF TV Antenna): Wideband for UHF TV. 19dB with Signal Booster
• Connectors: 2 x SMA & 1 x Coax
• Antenna power: Passive
• SMA cable length: 0.8 m (x2)
• Coaxial cable length: 5.0 m
• Antenna housing: UV Stable ASA Cover
• Antenna dimensions: 356 x 311 x 194 mm (LxWxH)
• Antenna Foot Dimensions: 10.4 x 19 cm
• Antenna weight: 1137 g
• Router type: 4G/5G and Wi-Fi
• 4G Antenna connector: 2 x SMA
• Ethernet ports: 5 x RJ45 (WAN and LAN)
• Number of connection devices: Up to 150
• Router antennas: 1 x 4G/5G (for external roof mount antenna) 2 x Wi-Fi (for internal whip antenna)
• Router power: 9-50 VDC (Reverse Polarity Protection) 12V Automotive Power Supply Included, 1.5m Lead Length 2 Amp Fused Input
• Router power consumption: 0.4A
• Family browsing: Yes. Blacklists and whitelists
• Remote diagnostics: Yes
• SIM: 2 x Unlocked
• Router housing: Aluminium
• Router dimensions: 270 x 132 x 45 mm (HxWxD)
• Router weight: 577 g
• Booster compatibility: Digital TV and DAB Radio
• Booster frequency: Wideband for UHF and VHF radio
• Booster power supply: 12/24V DC (Included)
• Booster power consumption: Low (50mA)
• Booster inputs/outputs: 1/2
• Booster variable gain: 0-19dB
• Booster noise: 3.5dB
• Booster dimensions: 51 x 142 x 31.5 mm (HxWxD)
