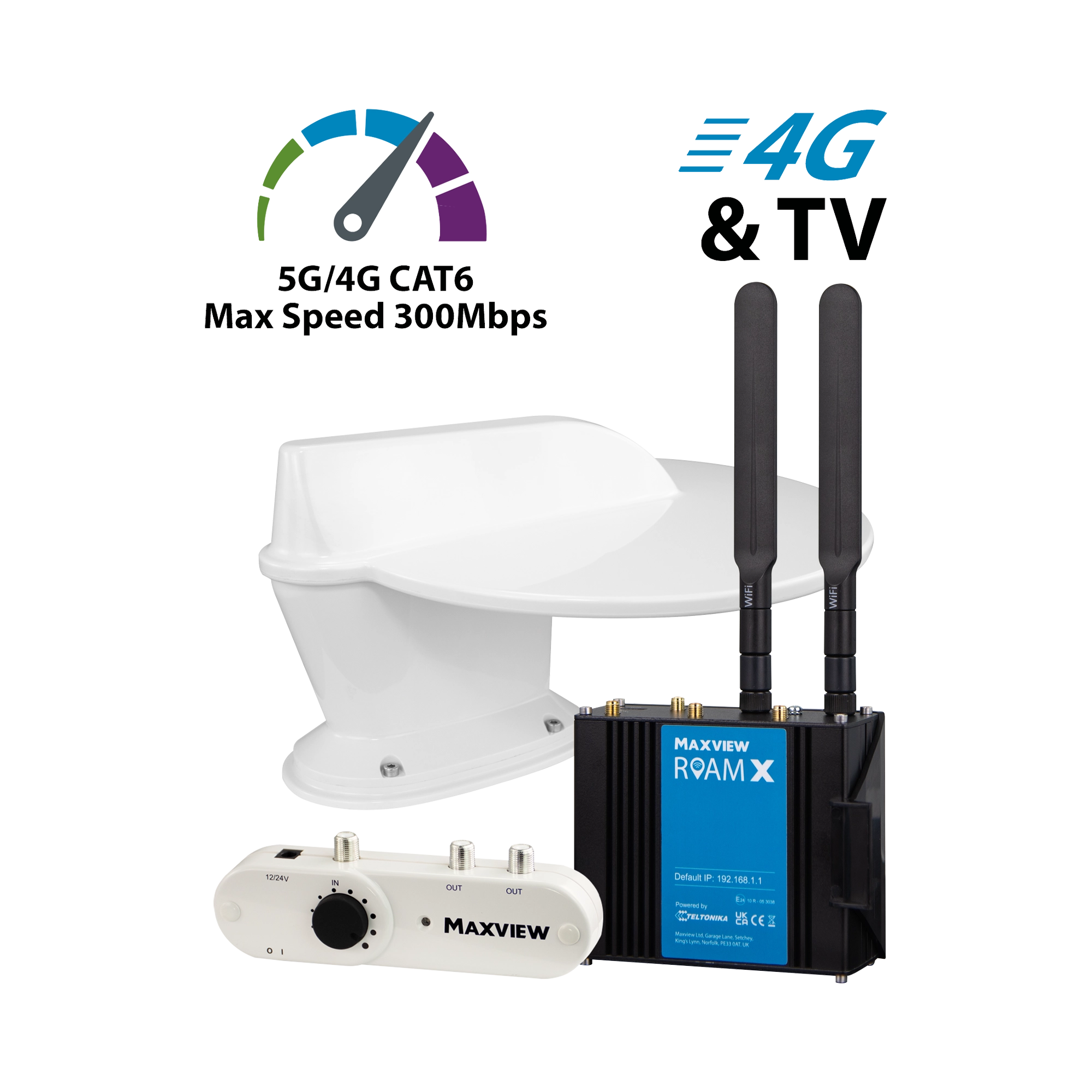

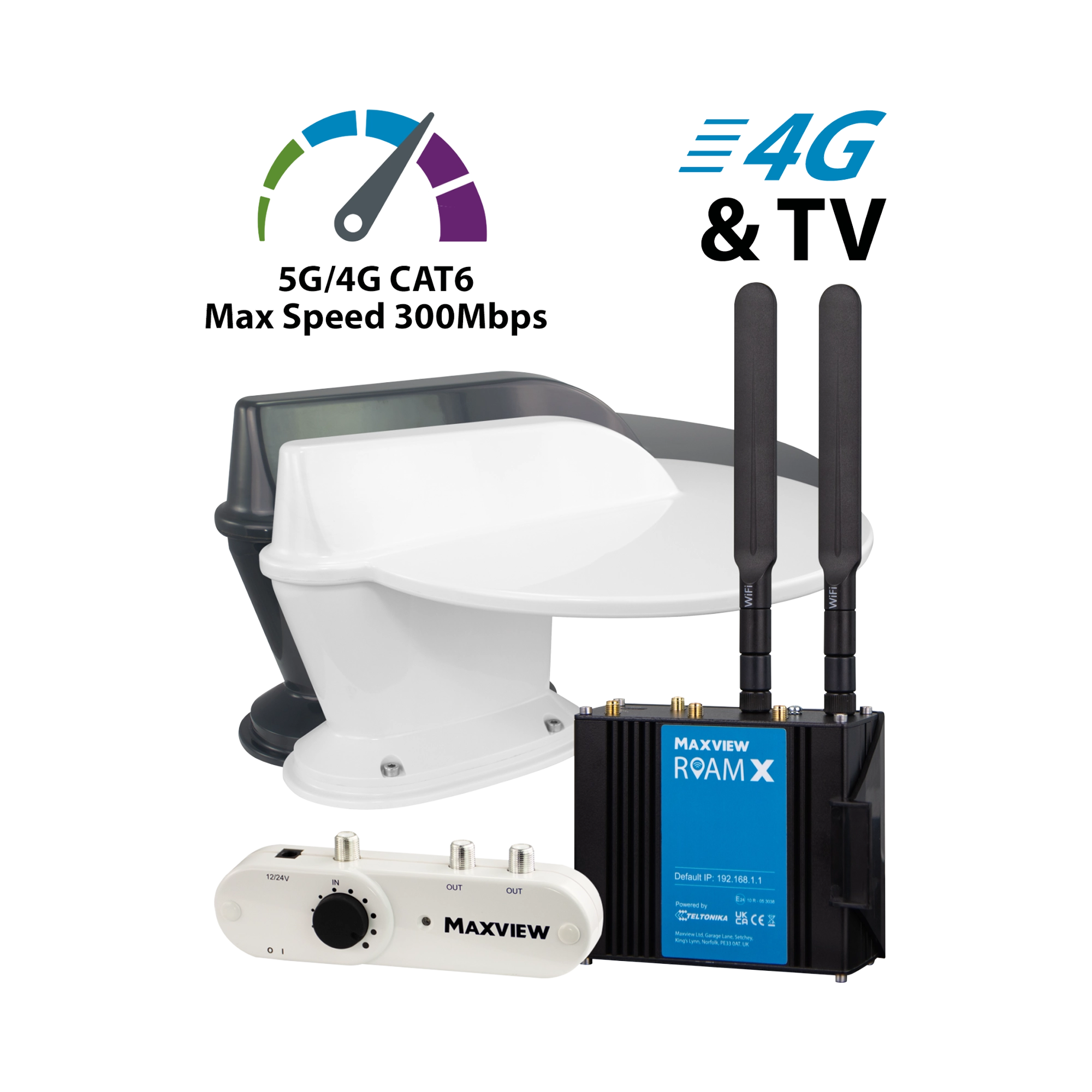

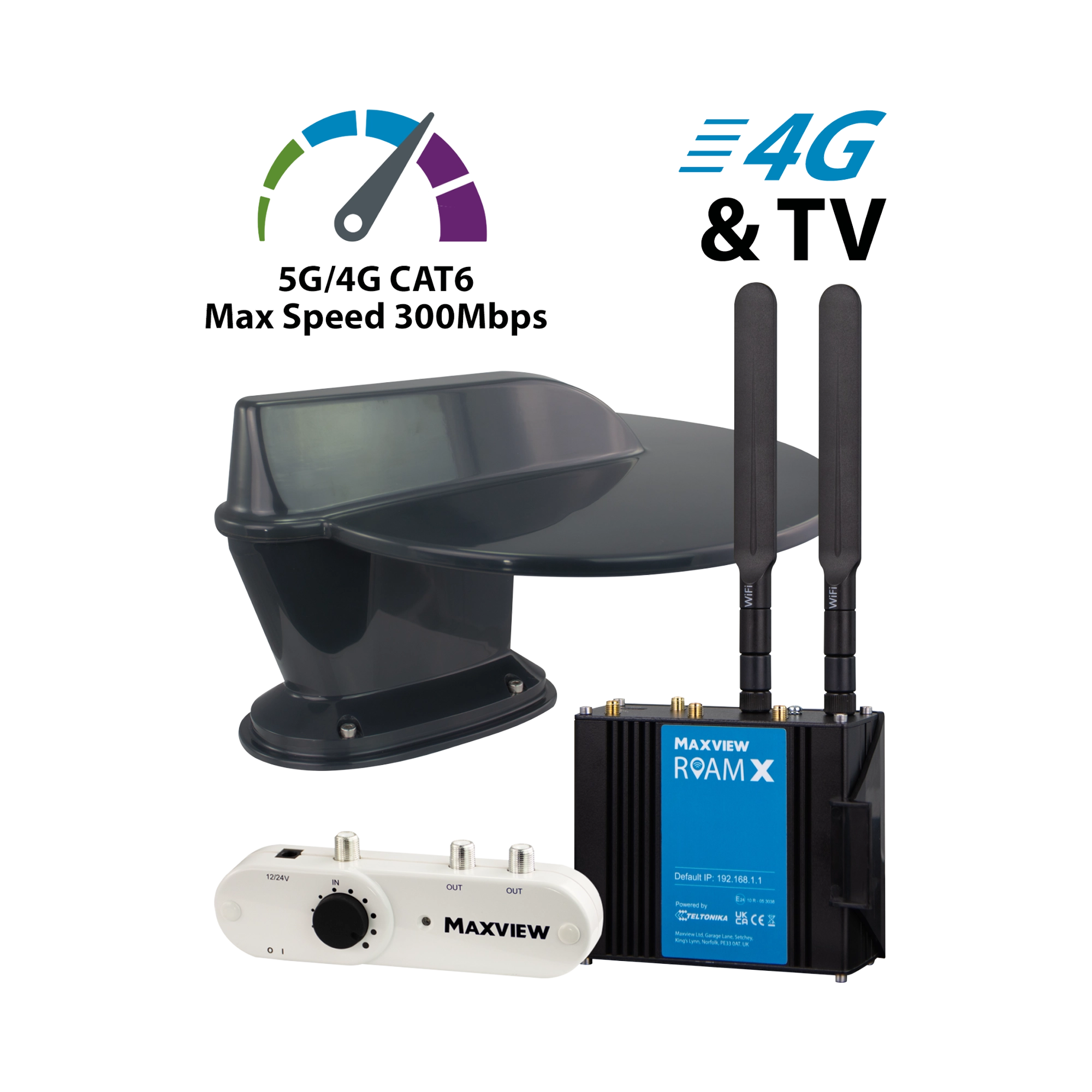

Maxview Roam X Combo Internet and Terrestrial TV

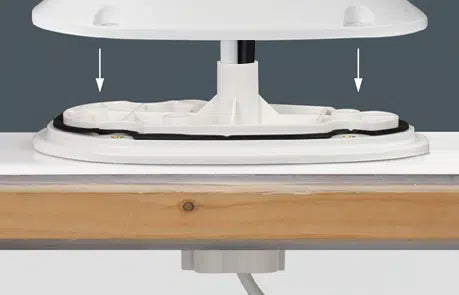

• Integrated Internet and TV Antenna: Combines 4G internet connectivity and Freeview terrestrial TV reception in one omni‑directional roof‑mounted antenna
• Omni‑Directional Reception: Captures signals from all directions without the need for manual adjustment

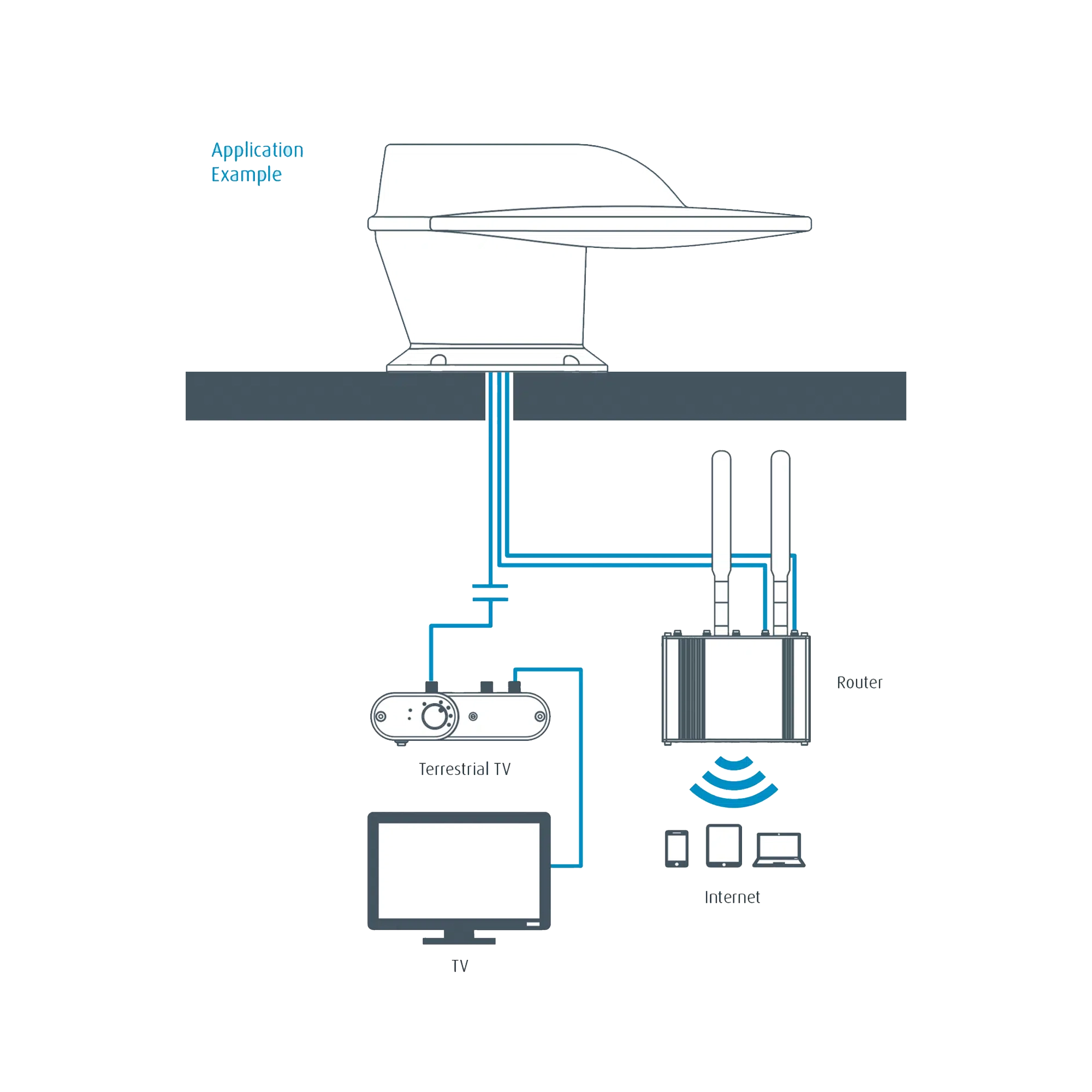

• 4G Wi‑Fi Hotspot: External antenna feeds mobile data into the included high‑performance router, creating a reliable onboard Wi‑Fi network
• Terrestrial TV Support: Integrated wideband TV antenna and booster delivers Freeview TV reception to your vehicle’s TV with a built‑in tuner

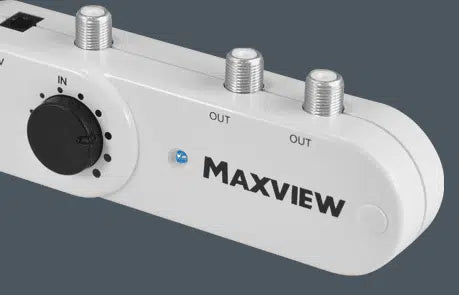

• Adjustable Signal Booster: Allows you to optimise TV reception strength in poor signal areas

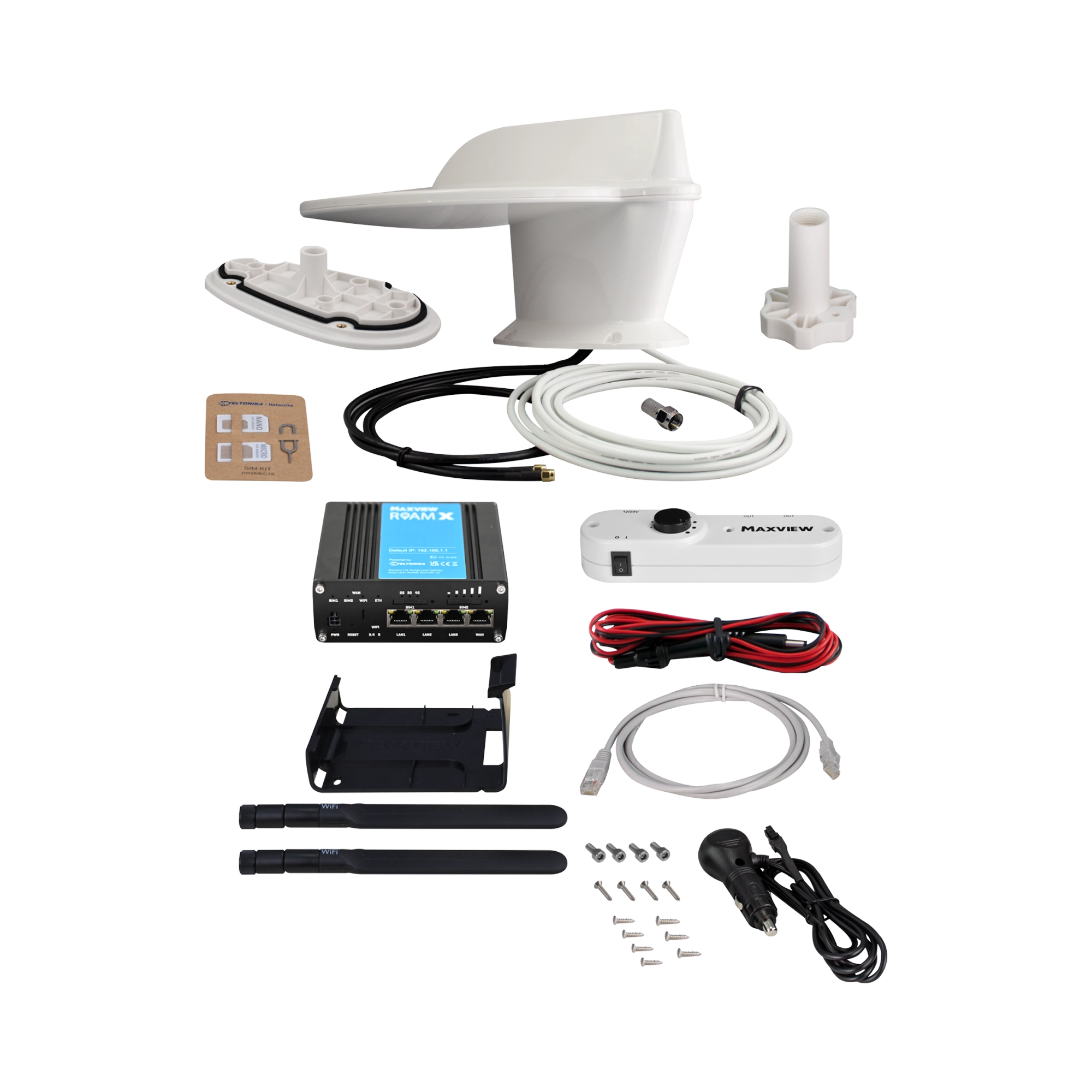

• Included Router: Designed for vehicles with anti‑vibration mounting bracket and durable aluminium housing
• Maxview SIM Included: Get online straight away with the supplied SIM
• Perfect for Touring Vehicles: Ideal for caravans, motorhomes, campervans, boats and other mobile living spaces

• Antenna type: Omni-directional
• Frequency/gain (4G Antenna): 698-6000 MHz/5.9dBi -8.8dBi Includes all 4G frequencies
• Frequency/gain (UHF TV Antenna): Wideband for UHF TV. 19dB with Signal Booster
• Connectors: 2 x SMA & 1 x Coax
• Antenna power: Passive
• SMA cable length: 0.8 m (x2)
• Coaxial cable length: 5.0 m
• Antenna housing: UV Stable ASA Cover
• Antenna dimensions: 356 x 311 x 194 mm (LxWxH)

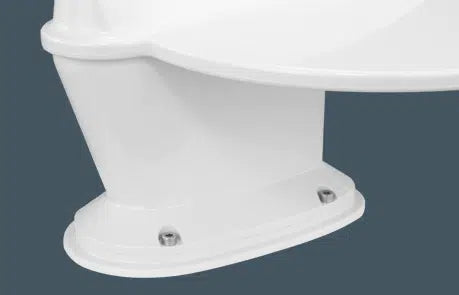

• Antenna Foot Dimensions: 10.4 x 19 cm
• Antenna weight: 1137 g

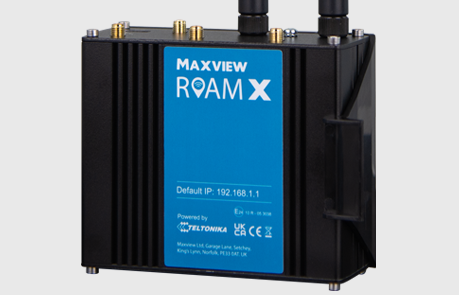

• Router type: 4G and Wi-Fi
• 4G Antenna connector: 2 x SMA
• Ethernet ports: 4 x RJ45 (WAN and LAN)
• Number of connection devices: Up to 100
• Router antennas: 1 x 4G (for external roof mount antenna) 2 x Wi-Fi (for internal whip antenna)
• Router power: 9-50 VDC (Reverse Polarity Protection) 12V Automotive Power Supply Included, 1.5m Lead Length 2 Amp Fused Input
• Router power consumption: 0.4A
• Family browsing: Yes. Blacklists and whitelists

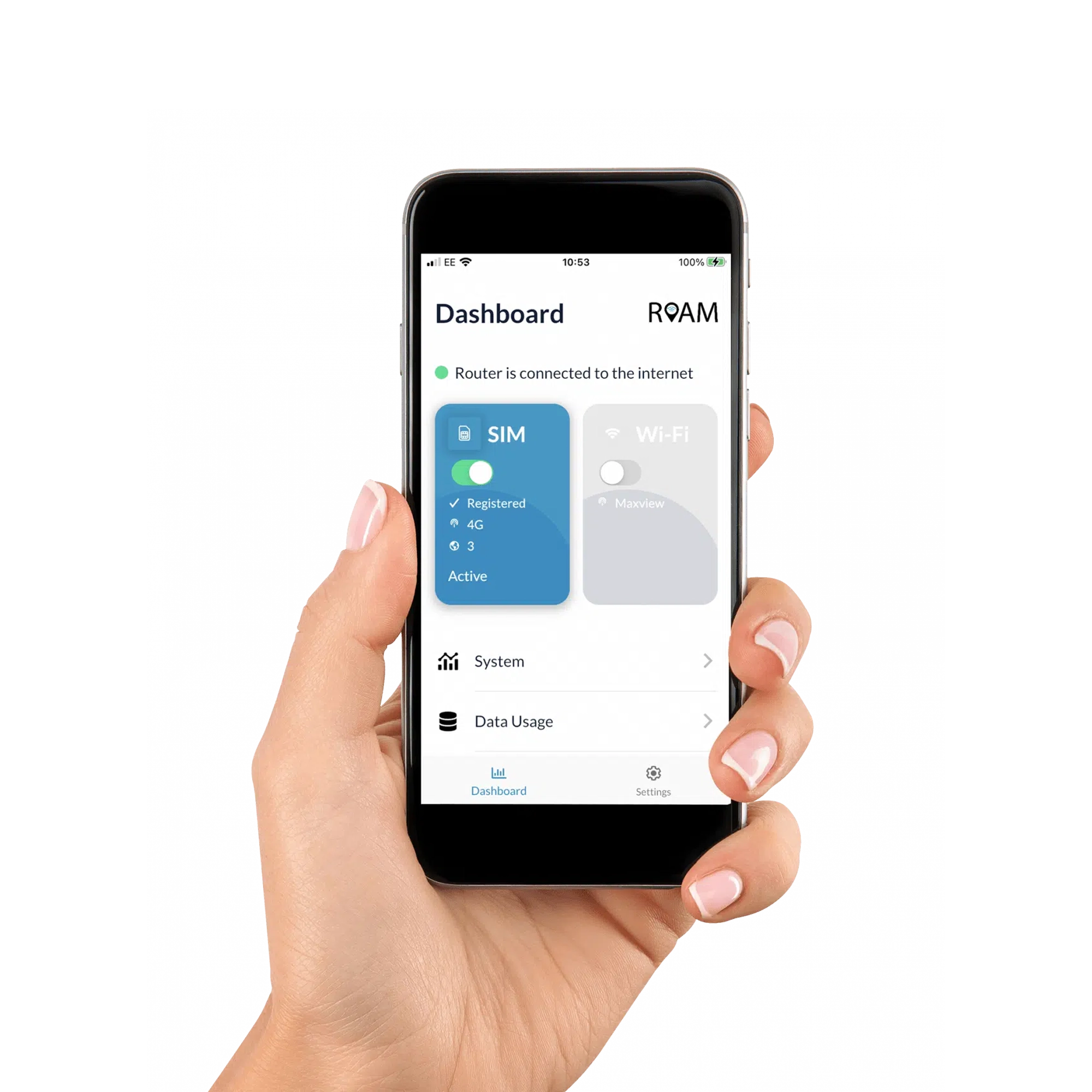

• Remote diagnostics: Yes
• SIM: 2 x Unlocked
• Router housing: Aluminium
• Router dimensions: 270 x 115 x 45 mm (HxWxD)
• Router weight: 550 g
• Booster compatibility: Digital TV and DAB Radio
• Booster frequency: Wideband for UHF and VHF radio
• Booster power supply: 12/24V DC (Included)
• Booster power consumption: Low (50mA)
• Booster inputs/outputs: 1/2
• Booster variable gain: 0-19dB
• Booster noise: 3.5dB
• Booster dimensions: 51 x 142 x 31.5 mm (HxWxD)

View product data sheet/brochure
