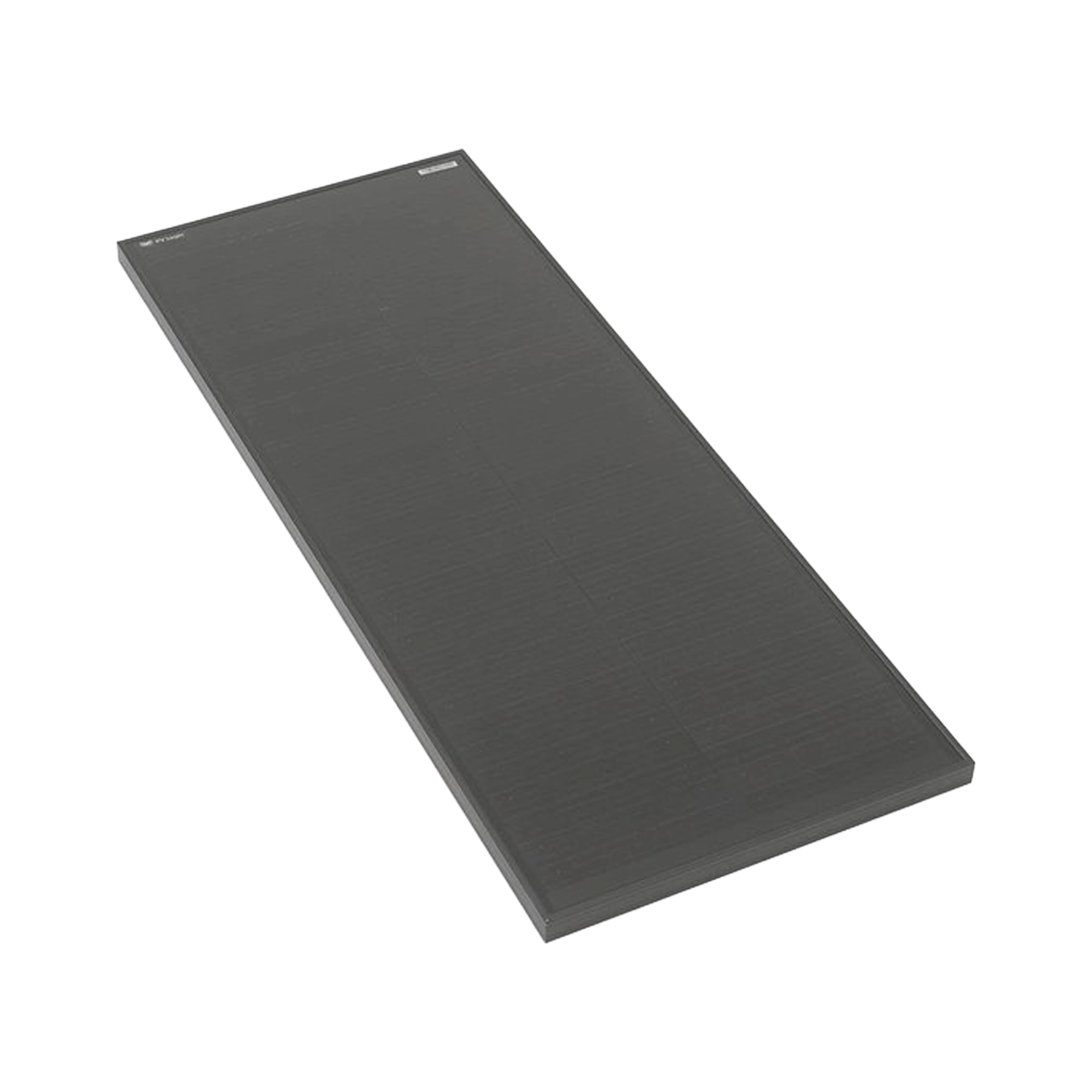

PV Logic 100W Mono High Density Rigid Solar Panel Roof & Deck Top Kit

• High-Efficiency Shingled Cells: Innovative cell overlapping reduces shading losses and hotspots, maximising sunlight capture for superior performance in variable conditions.
• 15A MPPT Pro Performance Upgrade: Unlike standard controllers, the MPPT Pro dynamically converts excess voltage into usable amperage, boosting your solar yield by up to 20%.
• Dual-Battery Charging: The MPPT Pro controller independently manages and charges two separate battery banks (e.g., your leisure battery and engine starter battery) simultaneously.
• Smart Bluetooth Monitoring: Connect your smartphone via the free PV Logic app (iOS & Android) to track real-time solar generation, battery health, and system performance.
• Aerodynamic Premium Mounting: The bespoke anodised aluminium aero brackets provide a secure, low-profile finish, allowing the panel to be bonded directly to your roof, eliminating the need to drill holes.
• Robust & Weatherproof: Built with a sturdy, all-black anodised aluminium frame and IP67-rated junction box, this panel is designed to withstand harsh outdoor and marine environments.
• NCC Verified: Safety and performance tested by the National Caravan Council for peace of mind in mobile recreational environments.

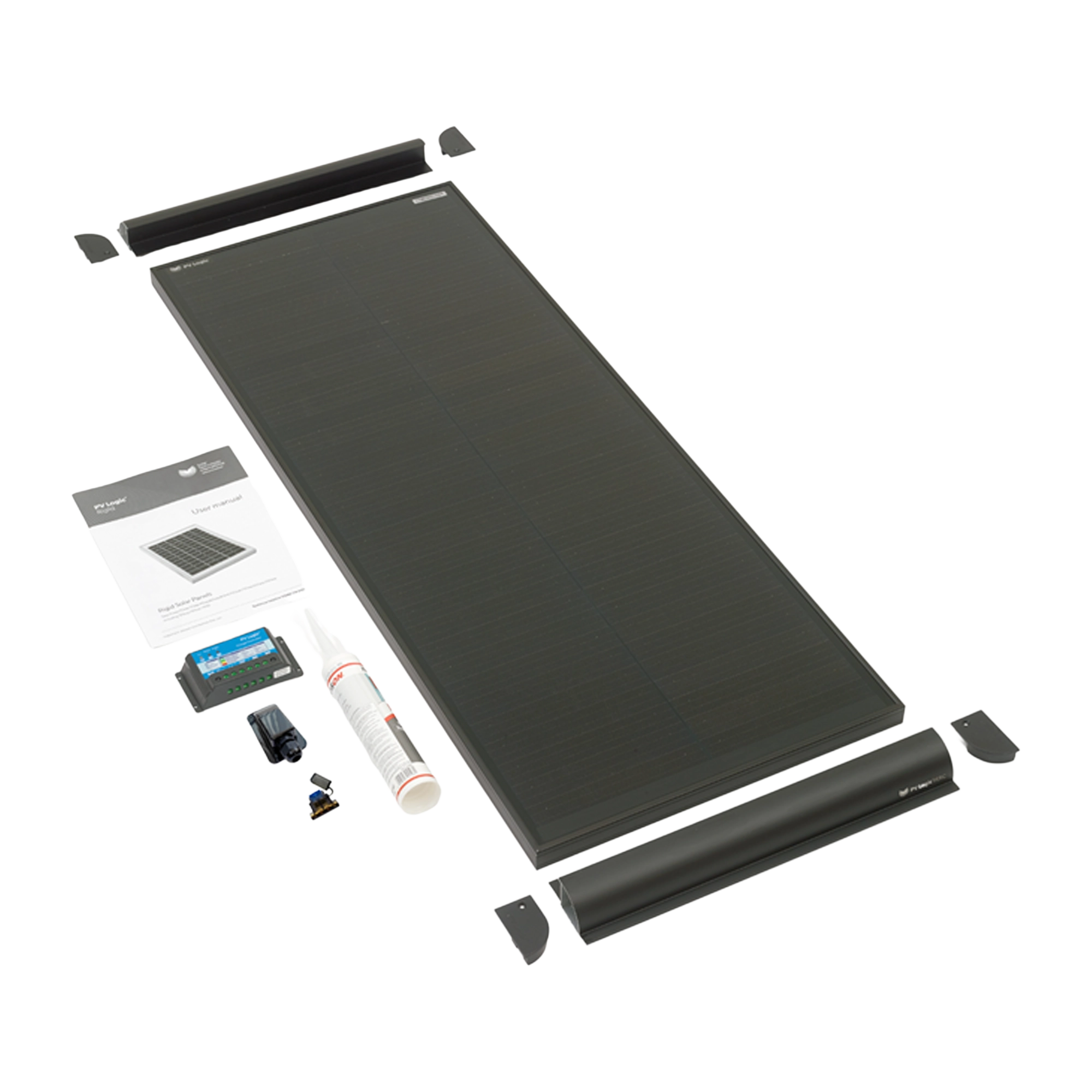

• 100W MHD solar panel with 4m cable
• 15A MPPT Pro Charge Controller
• Premium aero bracket fitting kit
• Cable feed gland
• Tube elastic adhesive
• User manual

• Dimensions: 1150 x 460 x 35 mm
• Weight: 6.9 kg
• *Typical watts per day: 600W
• *Typical amps per day: 31.92A
• Charge controller: 15A
• Voltage at maximum power (VMP): 18.8V
• Nominal current (IMP): 5.32A
• Open-circuit voltage (VOC): 22.2V
• Short circuit current (ISC): 5.64A
• Panel warranty: 10 years

*Watts and amp hours/day based on six hours of average daily peak sunshine hours.
