PV Logic 110W MHD Flexi Roof & Deck Top Kit (Rear Exit)

• High-Performance Flexible Cells: Advanced shingled cell layout provides superior efficiency and resilience, allowing the panel to conform to curved roof profiles (up to 30°) without sacrificing output.
• Rear-Exit Design: The cables exit from the rear of the panel, allowing for a completely flush, stealth installation with no visible wiring on the roof.
• Ultra-Lightweight & Slim: Weighing only 2.5 kg, it is ideal for weight-sensitive builds, pop-top roofs, and marine decks where a heavy rigid panel is impractical.
• 15A MPPT Pro Performance Upgrade: Actively modifies voltage to match your battery requirements, increasing total solar yield by up to 20% compared to standard controllers.
• Smart Bluetooth Monitoring: Connect to the free PV Logic mobile app (iOS & Android) to track real-time solar generation, battery health, and historical performance directly from your smartphone.
• Intelligent Dual-Battery Management: The 15A MPPT Pro controller independently manages and charges two separate battery banks (e.g. your leisure battery and engine/starter battery) simultaneously.

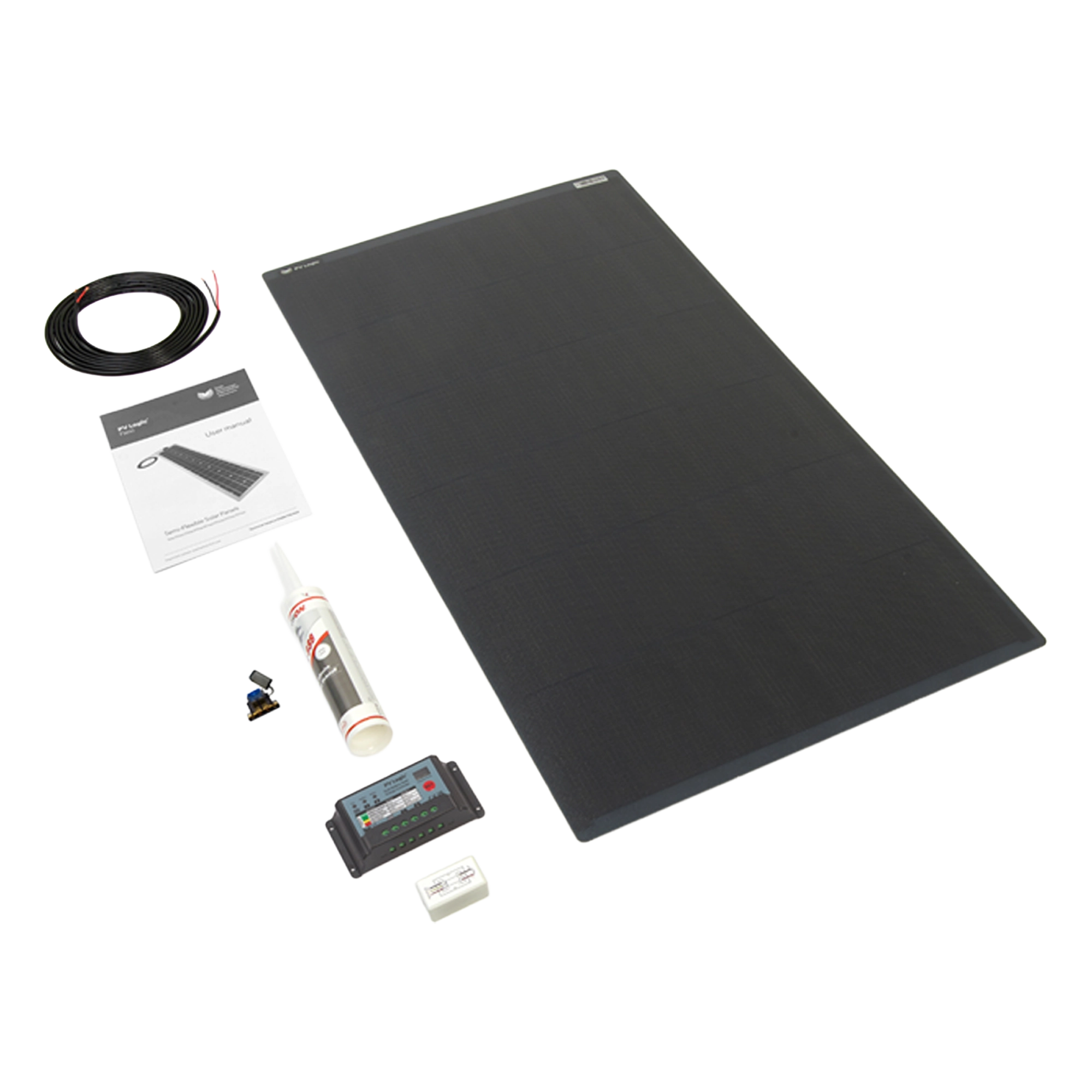

• 110W MHD semi-flexible solar panel with 4m cable
• 15A MPPT Pro Charge Controller
• Shading diode
• Elastic Adhesive
• User manual

• Dimensions: 1050 x 550 x 2 mm
• Weight: 2.01 kg
• *Typical watts per day: 660W
• *Typical amps per day: 35.52A
• Charge controller: 15A
• Voltage at maximum power (VMP): 18.6V
• Nominal current (IMP): 5.92A
• Open-circuit voltage (VOC): 22V
• Short circuit current (ISC): 6.27A
• Panel warranty: 4 years

*Watts and amp hours/day based on six hours of average daily peak sunshine hours.
