PV Logic 110W MHD Flexi Roof & Deck Top Kit (Top Exit)

Name: PV Logic 110W MHD Flexi Roof & Deck Top Kit (Top Exit)
Brand: Solar Technology
SKU: STPVFURT110PT
Price: 523.00 GBP
Availability: InStock

SKU: STPVFURT110PT

£523.00

INTERESTED IN THIS PRODUCT?

Price shown excludes fitting. Get in touch for your personalised quote, including professional installation by our team.
Contact us for a fitting quote →

The 110W Mono High Density (MHD) Flexi Solar Kit is a high-performance, ultra-lightweight power solution designed for campervans, motorhomes, and boat decks where weight and space are at a premium. Featuring advanced shingled monocrystalline cell technology, this panel delivers superior power density and efficiency. This comprehensive kit is bundled with the 15A MPPT Pro Charge Controller, which elevates system performance by harvesting up to 20% more energy than standard controllers. With a rugged, flexible design that conforms to slightly curved surfaces and a tough ETFE top sheet, this kit is built to withstand extreme environments, including saltwater spray and intense UV exposure.

FEATURES & BENEFITS

High-Efficiency Shingled Cells: Utilises the latest solar cell technology to maximise power generation in a compact, lightweight footprint.
Flexible & Durable Design: At just 2mm thick, the panel is ideal for flat or slightly curved surfaces (up to 3cm curve per metre), making it perfect for roof and deck installations.
15A MPPT Pro Performance Upgrade: Dynamically modifies voltage to match your battery’s requirements, increasing total solar yield by up to 20% compared to standard PWM controllers.
Smart Bluetooth Monitoring: Integrated Bluetooth connectivity allows you to monitor real-time system performance, battery health, and charging data via the free mobile app (iOS & Android).
Intelligent Dual-Battery Management: The 15A MPPT Pro controller independently manages and charges two separate battery banks (e.g. your leisure battery and engine/starter battery) simultaneously.
Weatherproof Construction: Tested against saltwater spray (ISO 9227) and UV exposure (ISO 4892) to ensure long-term reliability in harsh outdoor conditions.

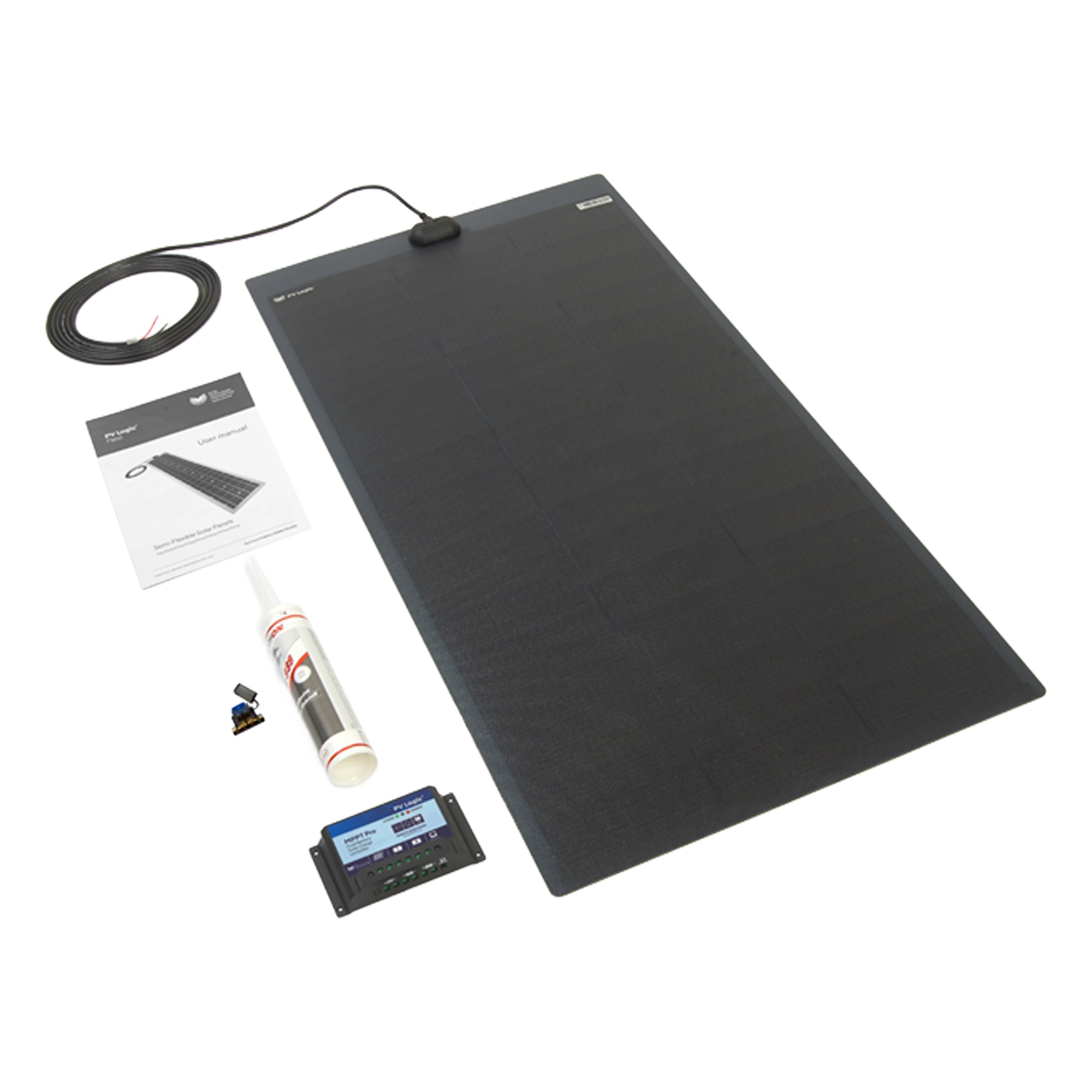

WHAT'S INCLUDED

110W MHD semi-flexible solar panel with 4m cable
15A MPPT Pro Charge Controller
Shading diode
Elastic Adhesive
User manual

TECHNICAL SPECIFICATION

Dimensions: 1080 x 540 x 2 mm
Weight: 2.01 kg
*Typical watts per day: 660W
*Typical amps per day: 36.72A
Charge controller: 15A
Voltage at maximum power (VMP): 18.0V
Nominal current (IMP): 6.12A
Open-circuit voltage (VOC): 21.2V
Short circuit current (ISC): 6.48A
Panel warranty: 4 years

*Watts and amp hours/day based on six hours of average daily peak sunshine hours.

ADDITIONAL INFORMATION

View product data sheet/brochure
