PV Logic 125W Mono High Density Rigid Solar Panel Roof & Deck Top Kit

• High-Efficiency Shingled Cells: Advanced solar cell technology provides improved output and reliable charging performance, even in challenging weather or partially shaded conditions.
• 15A MPPT Pro Performance Upgrade: The included MPPT Pro controller actively modifies voltage to match your battery’s requirements, increasing total solar yield by up to 20% compared to standard PWM controllers.
• Smart Bluetooth Monitoring: Connect to the free PV Logic mobile app (iOS & Android) to monitor real-time system performance, battery health, and historical data directly from your smartphone.
• Intelligent Dual-Battery Charging: The 15A MPPT Pro controller independently manages and charges two separate battery banks (e.g., your leisure battery and your engine/starter battery) simultaneously.
• Premium Aerodynamic Mounting: The bespoke aero brackets provide a low-profile, secure, and professional fit, allowing the panel to be bonded directly to the roof without the need for drilling.
• Built for Durability: Features a robust, anodised aluminium frame and an IP67-rated waterproof junction box, backed by a 10-year module warranty.

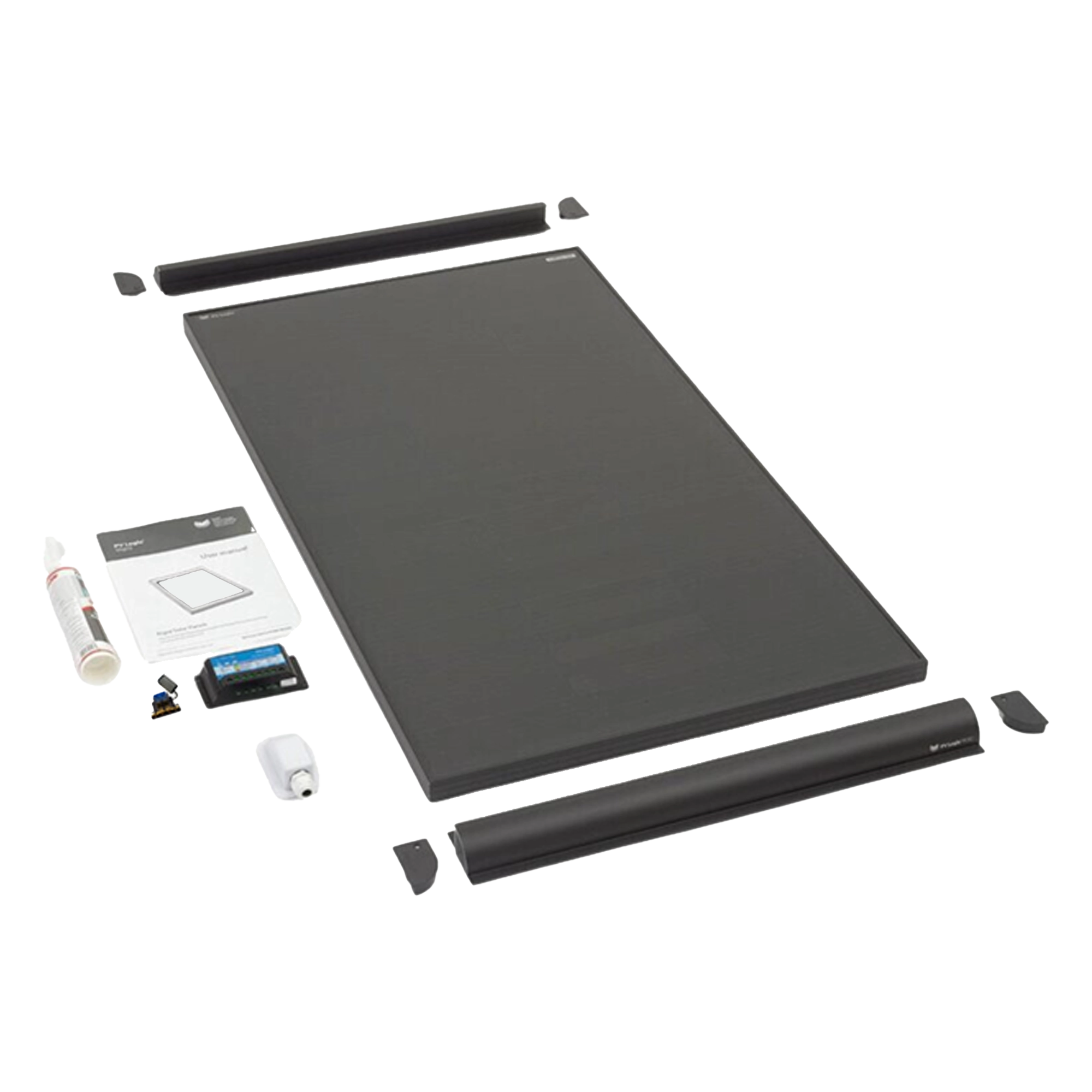

• 125W MHD solar panel with 4m cable
• 15A MPPT Pro Charge Controller
• Premium aero bracket fitting kit
• Cable feed gland
• Tube elastic adhesive
• User manual

• Dimensions: 988 x 670 x 35 mm
• Weight: 7.5 kg
• *Typical watts per day: 750W
• *Typical amps per day: 23.52A
• Charge controller: 15A
• Voltage at maximum power (VMP): 31.9V
• Nominal current (IMP): 3.92A
• Open-circuit voltage (VOC): 37.6V
• Short circuit current (ISC): 4.15A
• Panel warranty: 10 years

*Watts and amp hours/day based on six hours of average daily peak sunshine hours.

View product data sheet/brochure
