PV Logic 150W MHD Flexi Roof & Deck Top Kit (Rear Exit)

• High-Efficiency Shingled Cells: Utilises the latest solar cell technology to maximise power generation in a compact, lightweight footprint.
• Flush, Sleek Design: The rear-exit cable configuration ensures no protrusions on the top surface, providing a professional, factory-fitted look.
• Flexible & Durable: At just 2mm–4mm thick, the panel is ideal for flat or slightly curved surfaces (up to 3cm curve per metre), making it perfect for roof and deck installations.
• 15A MPPT Pro Performance Upgrade: Dynamically modifies voltage to match your battery’s requirements, increasing total solar yield by up to 20% compared to standard PWM controllers.
• Smart Bluetooth Monitoring: Integrated Bluetooth connectivity allows you to monitor real-time system performance, battery health, and charging data via the free mobile app (iOS & Android).
• Intelligent Dual-Battery Management: The 15A MPPT Pro controller independently manages and charges two separate battery banks (e.g. your leisure battery and engine/starter battery) simultaneously.
• Weatherproof Construction: Tested against saltwater spray (ISO 9227) and UV exposure (ISO 4892) to ensure long-term reliability in harsh outdoor conditions.

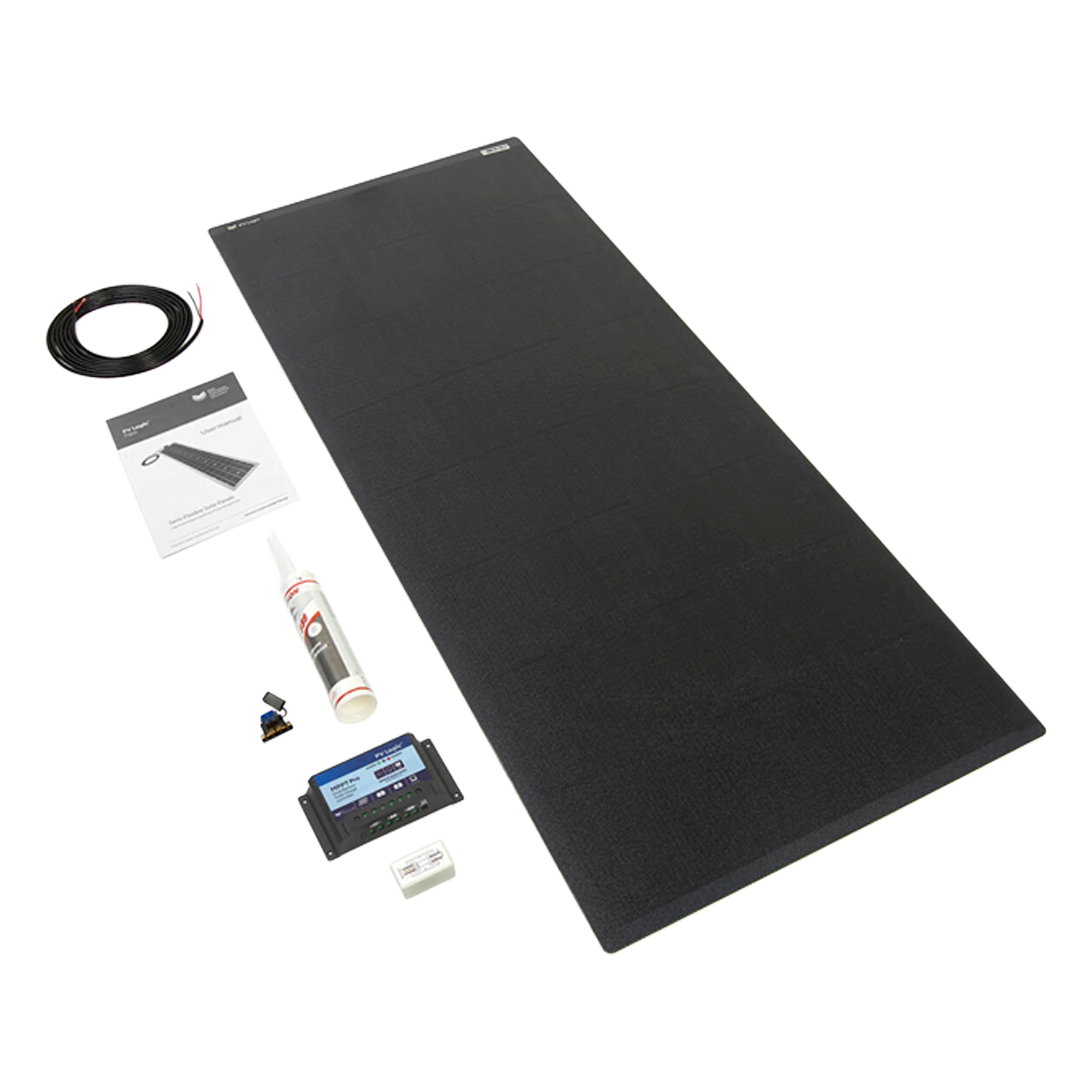

• 150W MHD semi-flexible solar panel with 2x 90cm cable fitted with MC4 connectors
• 2x 3m cable with MC4 connectors at one end, bare cable at the other
• 15A MPPT Pro Charge Controller
• Shading diode
• Elastic Adhesive
• User manual

• Dimensions: 1390 x 560 x 2 mm
• Weight: 2.7 kg
• *Typical watts per day: 900W
• *Typical amps per day: 48.42A
• Charge controller: 15A
• Voltage at maximum power (VMP): 18.6V
• Nominal current (IMP): 8.07A
• Open-circuit voltage (VOC): 22.0V
• Short circuit current (ISC): 8.55A
• Panel warranty: 4 years

*Watts and amp hours/day based on six hours of average daily peak sunshine hours.
