PV Logic 150W MHD Flexi Roof & Deck Top Kit (Top Exit)

Name: PV Logic 150W MHD Flexi Roof & Deck Top Kit (Top Exit)
Brand: Solar Technology
SKU: STPVFURT150PT
Price: 628.00 GBP
Availability: InStock

SKU: STPVFURT150PT

£628.00

INTERESTED IN THIS PRODUCT?

Price shown excludes fitting. Get in touch for your personalised quote, including professional installation by our team.
Contact us for a fitting quote →

The 150W Mono High Density (MHD) Flexi Solar Kit provides a powerful, high-efficiency energy solution for those who prioritise weight reduction and aerodynamic performance. Designed specifically for campervans, motorhomes, and boat decks, this kit utilises advanced "shingled" monocrystalline cell technology to deliver exceptional power output from a compact, ultra-thin, and flexible form factor. This premium kit is paired with the 15A MPPT Pro Charge Controller, which intelligently maximises energy harvest by up to 20% compared to standard systems. With a durable ETFE surface, the panel is engineered to withstand harsh environments, including saltwater spray and intense UV exposure, making it a reliable choice for long-term off-grid travel.

FEATURES & BENEFITS

High-Efficiency Shingled Cells: Utilises cutting-edge solar cell technology to maximise power density, ensuring optimal performance even in challenging lighting conditions.
Flexible & Ultra-Slim: At only 2mm thick, the panel conforms to flat or slightly curved surfaces (up to 3cm curve per metre), allowing for a seamless fit on complex roofs and decks.
15A MPPT Pro Performance Upgrade: Dynamically modifies voltage to match your battery’s requirements, increasing total solar yield by up to 20% compared to standard PWM controllers.
Smart Bluetooth Monitoring: Integrated Bluetooth connectivity allows you to monitor real-time system performance, battery health, and historical data via the free PV Logic mobile app (iOS & Android).
Intelligent Dual-Battery Management: The 15A MPPT Pro controller independently manages and charges two separate battery banks (e.g. your leisure battery and engine/starter battery) simultaneously.
Rugged, Weatherproof Construction: Featuring a high-grade ETFE top sheet, the panel is fully tested against saltwater spray and UV degradation to ensure maximum longevity in marine and outdoor environments.

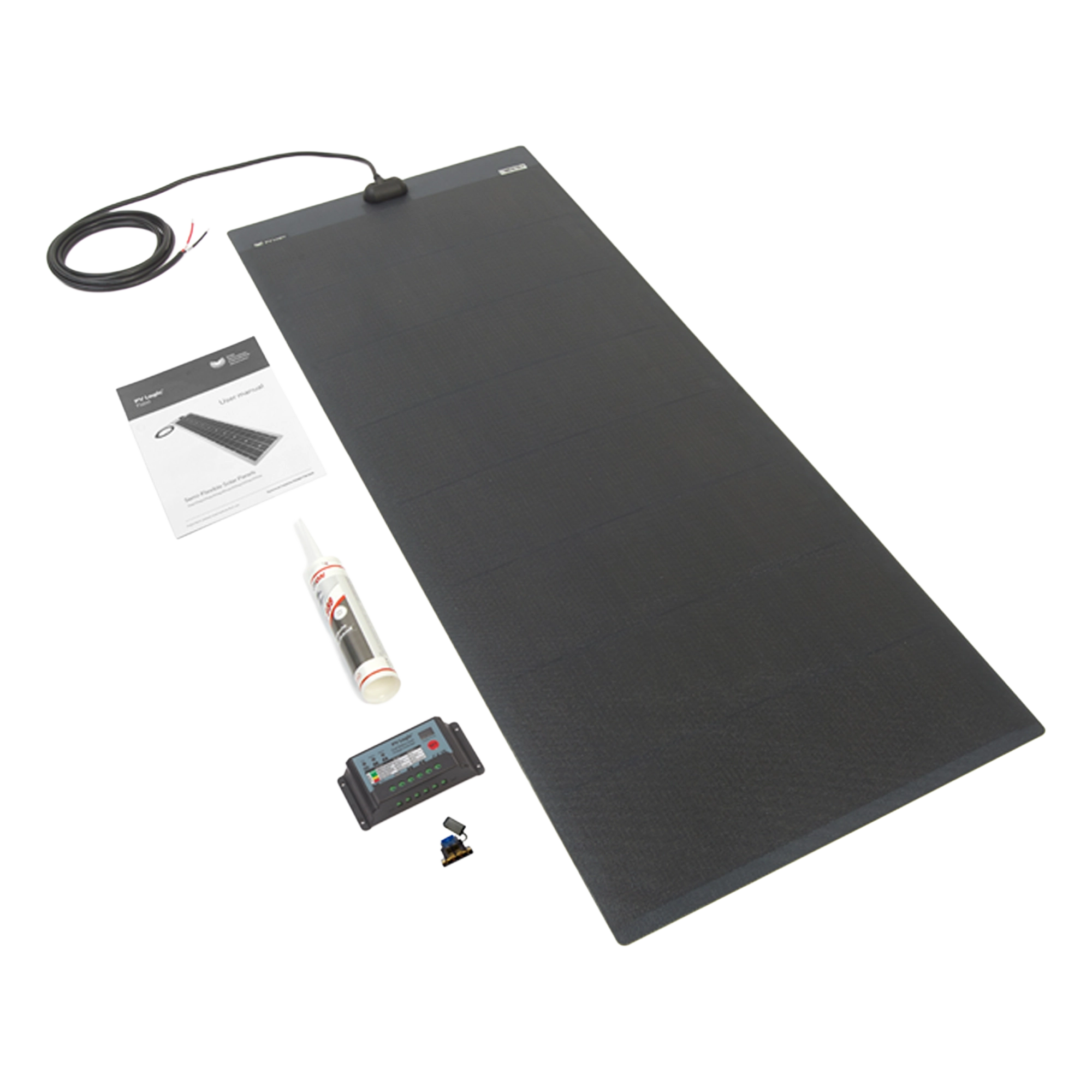

WHAT'S INCLUDED

150W MHD semi-flexible solar panel with 4m cable
15A MPPT Pro Charge Controller
Shading diode
Elastic Adhesive
User manual

TECHNICAL SPECIFICATION

Dimensions: 1440 x 560 x 2 mm
Weight: 2.3 kg
*Typical watts per day: 900W
*Typical amps per day: 48.42A
Charge controller: 15A
Voltage at maximum power (VMP): 18.6V
Nominal current (IMP): 8.07A
Open-circuit voltage (VOC): 22.0V
Short circuit current (ISC): 8.55A
Panel warranty: 4 years

*Watts and amp hours/day based on six hours of average daily peak sunshine hours.

ADDITIONAL INFORMATION

View product data sheet/brochure
