PV Logic 200W MHD Flexi Roof & Deck Top Kit (Rear Exit)

• High-Efficiency Shingled Cells: Next-generation cell layout minimises shading losses and maximises power density, providing high output in a compact, lightweight design.
• Rear-Exit Stealth Design: Cables exit from the underside of the panel, allowing for a perfectly smooth roof finish with no visible wires or junction box protrusions.
• Ultra-Lightweight & Flexible: At just 2mm thick, the panel weighs only 3.6 kg, making it perfect for curved surfaces (up to 3cm curve per metre) and weight-critical roof installations.
• 15A MPPT Pro Performance Upgrade: Dynamically tracks the optimal power point to harvest up to 20% more energy than standard PWM controllers, even in variable lighting.
• Smart Bluetooth Monitoring: Keep track of your energy production and battery health in real-time via the free PV Logic mobile app (iOS & Android).
• Intelligent Dual-Battery Management: The 15A MPPT Pro controller independently manages and charges two separate battery banks (e.g. your leisure battery and engine/starter battery) simultaneously.
• Marine-Grade Durability: High-grade ETFE construction is rigorously tested against saltwater spray and UV damage, ensuring consistent performance in harsh environments.

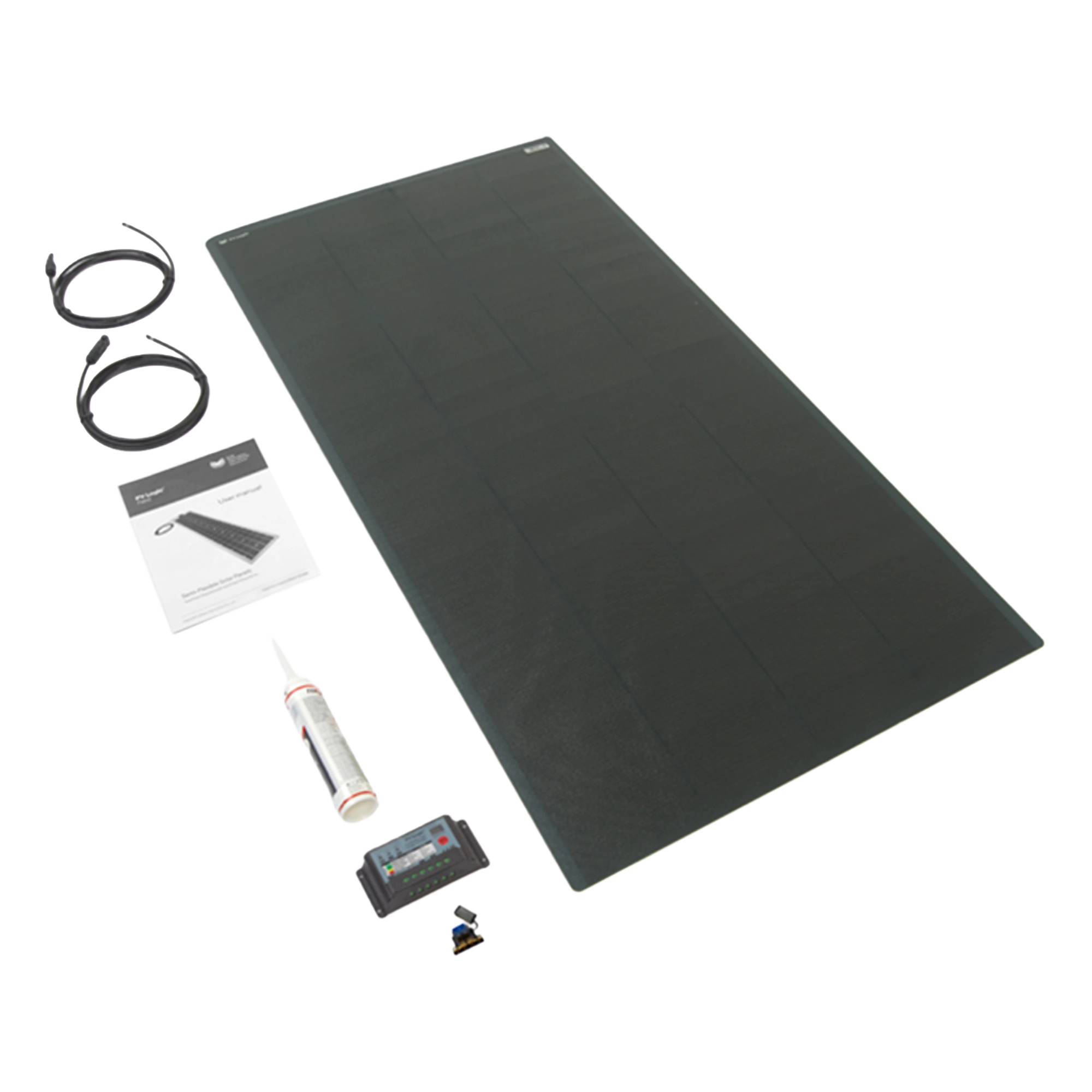

• 200W MHD semi-flexible solar panel with 2x 90cm cable fitted with MC4 connectors
• 2x 3m cable with MC4 connectors at one end, bare cable at the other
• 15A MPPT Pro Charge Controller
• Elastic Adhesive
• User manual

• Dimensions: 1380 x 890 x 2 mm
• Weight: 3.4 kg
• *Typical watts per day: 1200W
• *Typical amps per day: 49.2A
• Charge controller: 15A
• Voltage at maximum power (VMP): 24.4V
• Nominal current (IMP): 8.20A
• Open-circuit voltage (VOC): 28.8V
• Short circuit current (ISC): 8.69A
• Panel warranty: 4 years

*Watts and amp hours/day based on six hours of average daily peak sunshine hours.

View product data sheet/brochure
