PV Logic 200W Mono High Density Rigid Solar Panel Roof & Deck Top Kit

• High-Efficiency Shingled Cells: Innovative cell layout minimises shading losses and hotspots, maximising sunlight capture for superior performance in variable conditions.
• 15A MPPT Pro Performance Upgrade: Unlike standard controllers, the MPPT Pro dynamically modifies voltage to match your battery's needs, increasing total solar yield by up to 20%.
• Smart Bluetooth Monitoring: Connect to your smartphone via the free PV Logic mobile app (iOS & Android) to track real-time solar generation and battery health.
• Intelligent Dual-Battery Management: The 15A MPPT Pro controller independently manages and charges two separate battery banks (e.g., your leisure battery and engine/starter battery) simultaneously.

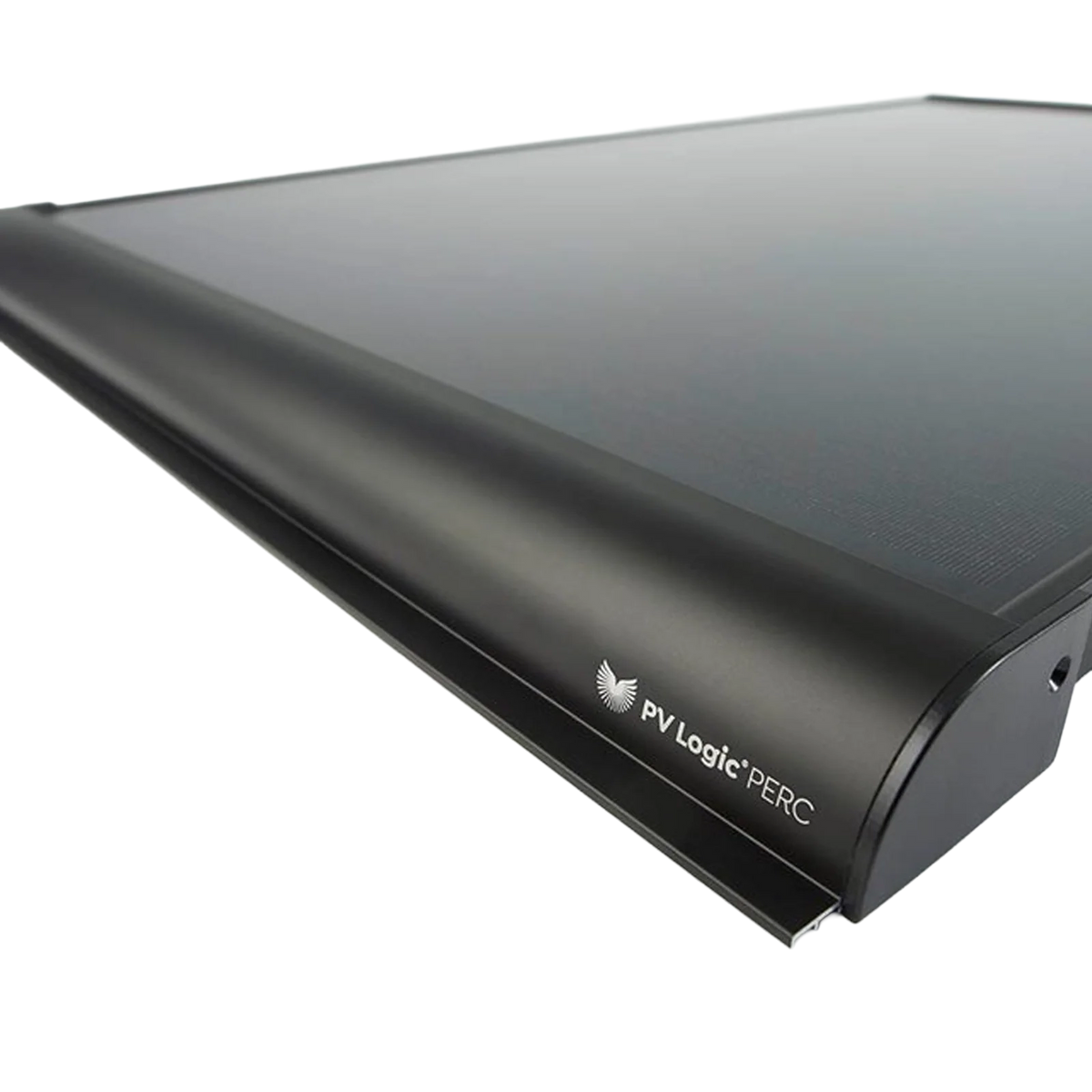

• Premium Aerodynamic Mounting: Custom-made aero brackets allow the panel to be bonded directly to your roof, providing a sleek, low-profile finish while eliminating the need to drill holes.
• Rugged & Weatherproof: Features a sturdy, all-black anodised aluminium frame and an IP67-rated junction box, built to withstand harsh outdoor and marine environments.
• NCC Verified: Safety and performance-tested by the National Caravan Council for peace of mind in mobile environments.

• 200W MHD solar panel with 4m cable
• 15A MPPT Pro Charge Controller
• Premium aero bracket fitting kit
• 3m cable with MC4 connectors at one end, bare cable at the other x2
• Cable feed gland
• Tube elastic adhesive
• User manual

• Dimensions: 1520 x 670 x 35 mm
• Weight: 11.8 kg
• *Typical watts per day: 1200W
• *Typical amps per day: 48A
• Charge controller: 15A
• Voltage at maximum power (VMP): 25.0V
• Nominal current (IMP): 8.00A
• Open-circuit voltage (VOC): 29.5V
• Short circuit current (ISC): 8.48A
• Panel warranty: 10 years

*Watts and amp hours/day based on six hours of average daily peak sunshine hours.

View product data sheet/brochure
