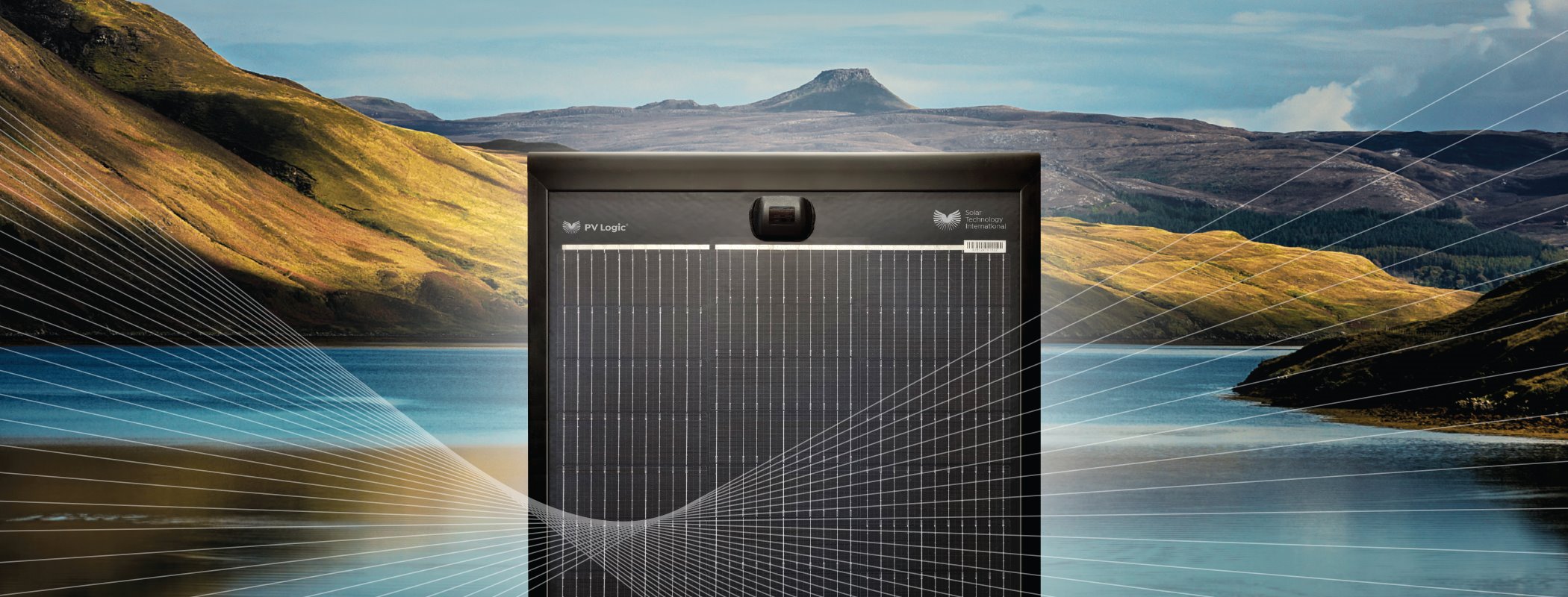

PV Logic 200W SlimEdge Rigid MHD Solar Panel Kit

Name: PV Logic 200W SlimEdge Rigid MHD Solar Panel Kit
Brand: Solar Technology
SKU: STPTMH200PT
Price: 570.00 GBP
Availability: InStock

SKU: STPTMH200PT

£570.00

INTERESTED IN THIS PRODUCT?

Price shown excludes fitting. Get in touch for your personalised quote, including professional installation by our team.
Contact us for a fitting quote →

The 200W SlimEdge MHD Kit represents the next evolution in high-performance solar technology, specifically engineered for motorhomes, campervans, and marine applications where weight and roof space are at a premium. Featuring advanced shingled monocrystalline cell technology, this kit delivers superior power density, capturing more energy per square inch than traditional rigid panels while remaining up to 50% lighter. The kit includes the 15A MPPT Pro Charge Controller, a high-efficiency power management unit that boosts solar yield by up to 20% compared to standard PWM controllers. Designed for convenience, the system features integrated aerodynamic brackets for a sleek, factory-fitted look and is fully compatible with Bluetooth smartphone monitoring.

FEATURES & BENEFITS

High-Efficiency Shingled Cells: Next-generation monocrystalline construction ensures optimal energy capture, even in low-light or partially shaded conditions.
Ultra-Slim & Aerodynamic: With a thickness of only 12mm and integrated aero-mounting brackets, this panel minimises drag and maximises roof payload capacity.
15A MPPT Pro Performance Upgrade: Dynamically modifies voltage to match your battery requirements, increasing total energy harvest by up to 20%.
Smart Bluetooth Monitoring: Use the free PV Logic mobile app (iOS & Android) to track real-time solar generation and battery health directly from your smartphone.
Intelligent Dual-Battery Management: The 15A MPPT Pro controller independently manages and charges both your leisure battery and engine starter battery simultaneously.
Durable & Weatherproof: Features a robust, corrosion-resistant anodised aluminium frame and an IP67-rated junction box, backed by a 10-year panel warranty.

WHAT'S INCLUDED

200W SlimEdge Rigid panel with integrated aero brackets
15A MPPT Pro Charge Controller
Scanstrut cable seal
Tube elastic adhesive
User manual

TECHNICAL SPECIFICATION

Dimensions: 1513 x 805 x 12 mm
Weight: 6.0 kg
*Typical watts per day: 1200W
*Typical amps per day: 39.96A
Charge controller: 15A
Voltage at maximum power (VMP): 28.5V
Nominal current (IMP): 6.16A
Open-circuit voltage (VOC): 32.5V
Short circuit current (ISC): 6.46A
IP rating: IP67
Panel warranty: 10 years

*Watts and amp hours/day based on six hours of average daily peak sunshine hours.

ADDITIONAL INFORMATION

View product data sheet/brochure
